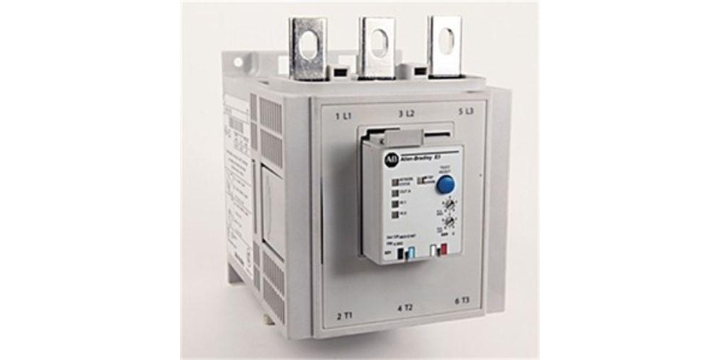

E3 Plus Overload Relay 42-210A 2 Input 1 Output

Units	Discount	Unit Price
1	-	AU$ 3,128.79

Overload Relays

10 Items

Standards

EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5, IEC 60255-17 IEC 60947-4-1 IEC 60255-8 VDE 0660 EN 60947-4-1, EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495, EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 EN 50495

[Ui] Rated Insulation Voltage

Power circuit: 690 V conforming to BS 4941 Power circuit: 690 V conforming to IEC 60947 Power circuit: 750 V conforming to VDE 0110 group C Power circuit: 600 V conforming to CSA C22.2 No 14, Power circuit: 1000 V AC conforming to IEC 60947-4, Power circuit: 1000 V conforming to IEC 60947-4-1 Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL, Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1

Ambient Air Temperature For Operation

-20…55 °C conforming to IEC 60255-8, -20…60 °C without derating conforming to IEC 60947-4-1, -20 → +55 °C, -20 → +60 °C

[Ith] Conventional Free Air Thermal Current

6 A for signalling circuit, 3 A for signalling circuit, 3 A for control circuit, 5 A for control circuit

Thermal Protection Adjustment Range

55…70 A, 63…80 A, 30…40 A, 30…38 A

Brand:	Allen-Bradley
Model:	193-EC1GF
