Schneider Electric A9L40601 3P + N - iPRD40r Modular Surge Arrester

View Brand

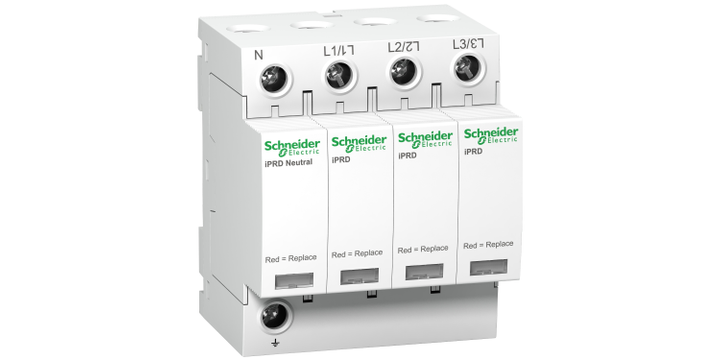

Schneider Electric A9L40601 3P + N - iPRD40r Modular Surge Arrester

Brand:	SCHNEIDER ELECTRIC
Model:	A9L40601

Specifications

View other Surge Protection Devices dimensions or variations

Colour

White (RAL 9003)

Device Short Name

iPRD40r

Product Or Component Type

Surge arrester with pluggable cartridge

Poles Description

3P + N

Standards

EN 61643-11:2012 IEC 61643-11:2011

Tightening Torque

2.5 N.m

[Ue] Rated Operational Voltage

230/400 V AC (+/- 10 %) at 50/60 Hz

Earthing System

TT TN-S

Surge Arrester Technology

MOV + GDT

[Ipe] Ground Residual Current

0.6 mA 0.003 mA

Product Name

Acti9 iPRD

Device Application

Distribution

Mounting Mode

Clip-on (DIN rail)

Range Of Product

Acti9

Quality Labels

NF KEMA-KEUR

Connections - Terminals

Tunnel type terminal (downside) 2.5…35 mm² Tunnel type terminal (upside) 2.5…35 mm²

9 Mm Pitches

Relative Humidity

5…95 %

Ambient Air Temperature For Operation

-25…60 °C

Ambient Air Temperature For Storage

-40…85 °C

Operating Altitude

2000 m

Product Certifications

Ik Degree Of Protection

IK03 conforming to IEC 62262

Signal Contacts Composition

1 SD (1 C/O)

Remote Signalling

With

Surge Arrester Type

Electrical distribution network

Surge Arrester Class Type

Type 2

[In] Nominal Discharge Current

Common mode: 15 kA (L/PE) Common mode: 15 kA (N/PE) Differential mode: 15 kA (L/N)

[Imax] Maximum Discharge Current

Common mode: 40 kA L/PE Common mode: 40 kA N/PE Differential mode: 40 kA L/N

[Uc] Maximum Continuous Operating Voltage

Common mode: 260 V N/PE Common mode: 350 V L/PE Differential mode: 350 V L/N

Maximum [Up] Voltage Protection Level

Common mode <1.4 kV type 2 N/PE Differential mode <1.4 kV type 2 L/N

[Ut] Temporary Overvoltage

337 V L/N 5 s withstand 1200 V N/PE 200 ms safe failure mode 442 V L/PE 5 s withstand 1453 V L/PE 200 ms safe failure mode

Disconnector Device Type

Associated circuit breaker iC60H 40 A curve C - Icu 15 kA Associated circuit breaker IC60N 40 A curve C - Icu 10 kA Associated circuit breaker NG125H 40 A curve C - Icu 36 kA Associated circuit breaker NG125L 40 A curve C - Icu 50 kA Associated circuit breaker NG125N 40 A curve C - Icu 25 kA Associated fuse gG 63 A - Icu 15 kA Associated fuse gG 80 A - Icu 50 kA

Signalling Circuit Voltage

0.25 A/250 V AC 50/60 Hz

Product Description

AU $ 714.07
