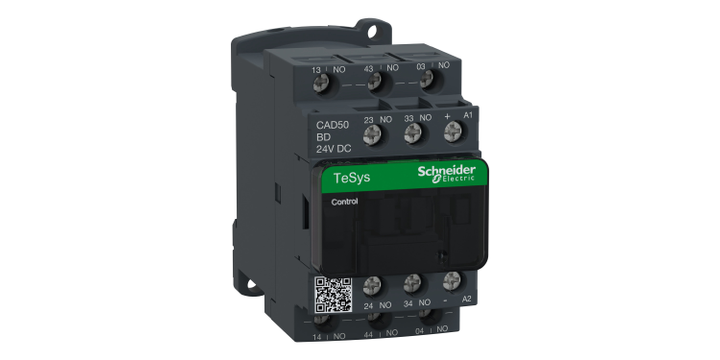

Schneider Electric CAD50BD Tesys D Control Relay - 5 No - <= 690 V - 24 V Dc Standard Coil
Schneider Electric CAD50BD Tesys D Control Relay - 5 No - <= 690 V - 24 V Dc Standard Coil
Brand: | SCHNEIDER ELECTRIC |
Model: | CAD50BD |
Specifications
Please select at least one specification below.
Utilisation Category
AC-14
DC-13
AC-15
Standards
EN/IEC 60947-5-1
GB/T 14048.5
UL 60947-5-1
CSA C22.2 No 60947-5-1
JIS C8201-5-1
[Ui] Rated Insulation Voltage
600 V UL certified
600 V CSA certified
690 V conforming to IEC 60947-5-1
Mounting Support
Rail
Plate
Ip Degree Of Protection
IP2X front face conforming to VDE 0106
Ambient Air Temperature For Operation
-40…60 °C
60…70 °C with derating
Mechanical Durability
30 Mcycles
Ambient Air Temperature For Storage
-60…80 °C
[Ith] Conventional Free Air Thermal Current
10 A (at 60 °C)
Minimum Switching Current
5 mA
Insulation Resistance
> 10 MOhm
Product Certifications
CB
CCC
UL
CSA
EAC
CE
UKCA
[Uimp] Rated Impulse Withstand Voltage
6 kV conforming to IEC 60947
This spec is not available in the specification table.
Connections - Terminals
Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
This spec is not available in the specification table.
Tightening Torque
1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2
1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
This spec is not available in the specification table.
Range
TeSys
TeSys Deca
This spec is not available in the specification table.
Product Name
TeSys CAD
This spec is not available in the specification table.
Operating Altitude
0...3000 m
This spec is not available in the specification table.
[Ue] Rated Operational Voltage
<= 690 V AC 25...400 Hz
This spec is not available in the specification table.
Contactor Application
Control circuit
This spec is not available in the specification table.
[Uc] Control Circuit Voltage
24 V DC
This spec is not available in the specification table.
Pole Contact Composition
5 NO
This spec is not available in the specification table.
Irms Rated Making Capacity
140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1
This spec is not available in the specification table.
[Icw] Rated Short-Time Withstand Current
100 A - 1 s
120 A - 500 ms
140 A - 100 ms
This spec is not available in the specification table.
Associated Fuse Rating
10 A gG conforming to IEC 60947-5-1
This spec is not available in the specification table.
Control Circuit Type
DC standard
This spec is not available in the specification table.
Control Circuit Voltage Limits
0.1...0.25 Uc (-40…70 °C):drop-out DC
0.7...1.25 Uc (-40…60 °C):operational DC
1...1.25 Uc (60…70 °C):operational DC
This spec is not available in the specification table.
Operating Time
53...72 ms coil energisation and NO closing
16...24 ms coil de-energisation and NO opening
This spec is not available in the specification table.
Maximum Operating Rate
180 cyc/mn
This spec is not available in the specification table.
Minimum Switching Voltage
17 V
This spec is not available in the specification table.
Non-Overlap Time
1.5 ms on energisation between NC and NO contact
1.5 ms on de-energisation between NC and NO contact
This spec is not available in the specification table.
Protective Treatment
TH conforming to IEC 60068
This spec is not available in the specification table.
Mechanical Robustness
Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27
Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27
Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6
This spec is not available in the specification table.
Inrush Power In W
5.4 W (at 20 °C)
This spec is not available in the specification table.
Hold-In Power Consumption In W
5.4 W at 20 °C
This spec is not available in the specification table.
Time Constant
28 ms
This spec is not available in the specification table.
Product Description
Schneider Electric CAD50BD Control Relay, Tesys Deca, 5NO, 0 to 690V, 24VDC Standard Coil, Screw Clamp
TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
