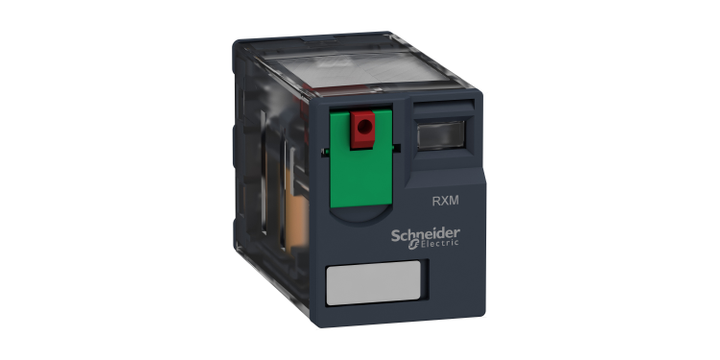

Schneider Electric RXM2AB1P7 Miniature Plug-in Relay - Zelio Rxm 2 C/O 230 V Ac 12 A
Schneider Electric RXM2AB1P7 Miniature Plug-in Relay - Zelio Rxm 2 C/O 230 V Ac 12 A
Specifications
infotip-icon
View other Power Relay dimensions or variations
Please select at least one specification below.
Contact Material
AgNi
Standards Met
IEC 61810-1 UL 508 CSA C22.2 No 14
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
55°C
[Ui] Rated Insulation Voltage
250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL
IP Degree of Protection
IP40 conforming to IEC 60529
[Ie] Rated Operational Current
12 A at 28 V (DC) NO conforming to IEC 12 A at 250 V (AC) NO conforming to IEC 6 A at 28 V (DC) NC conforming to IEC 6 A at 250 V (AC) NC conforming to IEC 12 A at 28 V (DC) conforming to UL 12 A at 277 V (AC) conforming to UL
Operating Rate
<= 1200 cycles/hour under load <= 18000 cycles/hour no-load
Control Type
Lockable test button
This spec is not available in the specification table.
Device Short Name
RXM
This spec is not available in the specification table.
Product or Component Type
Plug-in relay
This spec is not available in the specification table.
Range of Product
Harmony Electromechanical Relays
This spec is not available in the specification table.
[Uimp] Rated Impulse Withstand Voltage
4 kV during 1.2/50 µs
This spec is not available in the specification table.
Pollution Degree
3
This spec is not available in the specification table.
Mechanical Durability
10000000 cycles
This spec is not available in the specification table.
Ambient Air Temperature for Storage
-40…85 °C
This spec is not available in the specification table.
Electrical Durability
100000 cycles for resistive load
This spec is not available in the specification table.
Device Presentation
Complete product
This spec is not available in the specification table.
[Uc] control circuit voltage
230 V AC 50/60 Hz
This spec is not available in the specification table.
Product certifications
UL Lloyd's CE CSA GOST IECEE CB Scheme
This spec is not available in the specification table.
Contacts type and composition
2 C/O
This spec is not available in the specification table.
Average consumption
1.2 VA at 60 Hz
This spec is not available in the specification table.
Operating Position
Any position
This spec is not available in the specification table.
Shock Resistance
10 gn for in operation 30 gn for not operating
This spec is not available in the specification table.
Vibration Resistance
3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
This spec is not available in the specification table.
Dielectric Strength
1300 V AC between contacts with micro disconnection 2000 V AC between coil and contact with basic insulation 2000 V AC between poles with basic insulation
This spec is not available in the specification table.
Series Name
Miniature
This spec is not available in the specification table.
Status LED
Without
This spec is not available in the specification table.
Utilisation coefficient
20 %
This spec is not available in the specification table.
Shape of pin
Flat
This spec is not available in the specification table.
Maximum switching voltage
250 V conforming to IEC
This spec is not available in the specification table.
Resistive rated load
12 A at 250 V AC 12 A at 28 V DC
This spec is not available in the specification table.
Maximum switching capacity
3000 VA/336 W
This spec is not available in the specification table.
Minimum switching capacity
170 mW at 10 mA, 17 V
This spec is not available in the specification table.
Drop-out voltage threshold
>= 0.15 Uc
This spec is not available in the specification table.
Operate time
20 ms
This spec is not available in the specification table.
Release time
20 ms
This spec is not available in the specification table.
Average coil resistance
15000 Ohm at 20 °C +/- 15 %
This spec is not available in the specification table.
Rated operational voltage limits
184...253 V AC
This spec is not available in the specification table.
Protection category
RT I
This spec is not available in the specification table.
Test levels
Level A group mounting
This spec is not available in the specification table.
Safety reliability data
B10d = 100000
This spec is not available in the specification table.
Continuous Output Current
10 A
This spec is not available in the specification table.
average coil consumption in VA
1.2 at 60 Hz
This spec is not available in the specification table.
Product Description

Schneider Electric RXM2AB1P7 Miniature Plug in Relay, Harmony Electromechanical Relays, 12A, 2CO, Lockable Test but to N 230V Ac

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 12A, control circuit voltage of 230 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
