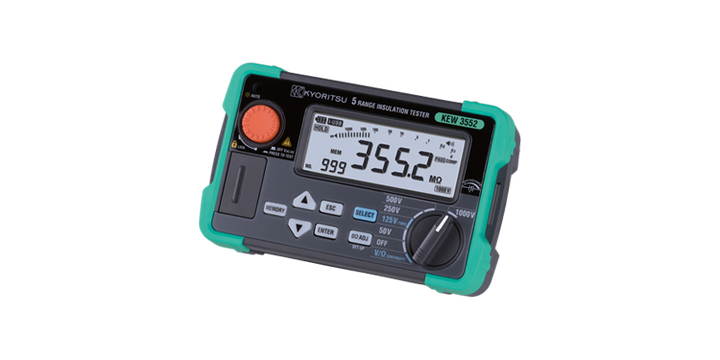

Kyoritsu 3552 Digital Insulation
Brand:
KYORITSU
Model:
3552
Product Description

Kyoritsu 3552 Digital Insulation

  • Test Voltage:
    • 50V/100V/125V/250V/500V/1000V
  • Measuring Range (Auto-ranging):
    • 100.0MΩ (50V)
    • 200.0MΩ (100V)
    • 250.0MΩ (125V)
    • 500.0MΩ (250V)
    • 20.00GΩ (500V)
    • 40.00GΩ (1000V)
  • Mid-scale Value:
    • 2MΩ (50V)
    • 5MΩ (100V/125V)
    • 10MΩ (250V)
    • 100MΩ (500V)
    • 200MΩ (1000V)
  • First Effective Measuring Range:
    • 0.100 to 10.00MΩ (50V)
    • 0.100 to 20.00MΩ (100V)
    • 0.100 to 25.00MΩ (125V)
    • 0.100 to 50.0MΩ (250V)
    • 0.100 to 500MΩ (500V)
    • 0.100 to 1000MΩ (1000V)
  • Accuracy:
    • ±2%rdg ±2dgt
  • Second Effective Measuring Range:
    • 0.050 to 0.099MΩ (50V/100V/125V/250V/500V/1000V)
    • 10.01 to 100.0MΩ (50V)
    • 20.01 to 200.0MΩ (100V)
    • 25.01 to 250.0MΩ (125V)
    • 50.1 to 500MΩ (250V)
    • 501 to 2000MΩ (500V)
    • 1001 to 4000MΩ (1000V)
  • Accuracy for Second Range (0.050 - 0.099MΩ):
    • ±5%rdg (0.050 - 0.099MΩ: ±2%rdg ±4dgt)
  • Rated Current:
    • 1.0 to 1.1mA
  • Output Short Circuit Current:
    • 1.5mA max
  • Ω / Continuity (Auto-ranging):
    • 40.00/400.0/4000Ω
  • Accuracy for Ω / Continuity:
    • ±2.5%rdg ±8dgt
  • Output Voltage on Open Circuit:
    • 5V (4~6.9V)
  • Output Short Circuit Current:
    • 200mA or more
  • Voltage Measurement:
    • AC: 2.0600V (4565Hz)
    • DC: -2.0~-600V, +2.0~+600V
  • Accuracy for Voltage Measurement:
    • ±1%rdg ±4dgt
  • General:
    • Applicable Standards:
      • IEC 61010 CAT III 600V / CAT IV 300V, IEC 61010-2-034
      • IEC 61557-1,2,4, IEC 61326-1,2-2, IEC 60529 (IP40)
    • Power Source:
      • LR6/R6 (AA) (1.5V) x 4
    • Communication Interface:
      • USB
  • Dimension / Weight:
    • 97(L) x 156(W) x 46(D) mm / Approx. 490g (including battery)
  • Accessories:
    • 7260 (Test lead with remote control switch)
    • 7261A (Test lead with alligator clip)
    • 8017A (Extension prod long)
    • 9173 (Carrying case)
    • 9121 (Shoulder strap)
    • LR6 (AA) x 4
    • Instruction manual
S$ 1,055.36
Quantity:
/ EA
