Schneider Electric SAE-UE-MS-CDAWE Argus - Surface Mount Dual-Load 360º Pir Occupancy Sensor
Schneider Electric SAE-UE-MS-CDAWE Argus - Surface Mount Dual-Load 360º Pir Occupancy Sensor
Brand: | SCHNEIDER ELECTRIC |
Model: | SAE-UE-MS-CDAWE |
Product Description

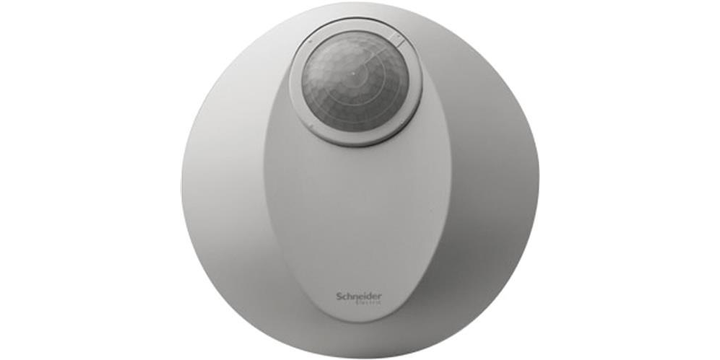

Schneider Electric SAE-UE-MS-CDAWE Surface Mount DUAL-LOAD 360 Pir Motion Sensor
- Range: ARGUS
- Product or Component Type: Occupancy sensor
- Load Type:
- Halogen lamp: ≤ 1000 VA
- Energy saving lamp: ≤ 80 VA
- Incandescent lamp: ≤ 2000 W
- Low voltage halogen lamp: ≤ 1000 VA
- Fluorescent lamp (100 µF): ≤ 900 VA
- HVAC: ≤ 5 A 30 V DC
- HVAC: ≤ 5 A 250 V AC cos phi = 1
- HVAC: ≤ 1 A 250 V AC cos phi = 0.4
Complementary:
- Rated Voltage: 230 V +/- 10 % AC 50/60 Hz
- Detection Angle: 360°
- Presence Detection Area: PIR: 360°, 7 x 7 m
- Device Mounting: Surface
- Mounting Support: Ceiling
- Mounting Height: 2…3 m
- Diameter: 120 mm
- Depth: 41 mm
Environment:
- Electrical Shock Protection Class: Class II
- IP Degree of Protection: IP20
- Ambient Air Temperature for Operation: 0…45 °C
- Standards:
- EN 60669-1
- EN 60669-2-1
S$ 288.68
