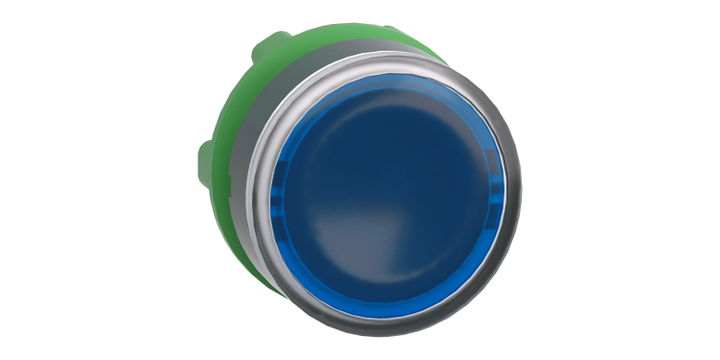

Schneider Electric ZB5AW363 Blue Flush Illuminated Pushbutton Head Ø22 Spring Return for Integral Led
Schneider Electric ZB5AW363 Blue Flush Illuminated Pushbutton Head Ø22 Spring Return for Integral Led
Specifications
infotip-icon
View other Push Button Heads dimensions or variations
Please select at least one specification below.
Range of Product
Harmony XB5
Standard
IEC 60947-5-4 JIS C8201-5-1 CSA C22.2 No 14 IEC 60947-1 IEC 60947-5-1 UL 508 GB 14048.5 JIS C8201-1
IP Degree of Protection
IP66 conforming to IEC 60529 IP67 IP69 IP69K
Ambient Air Temperature for Operation
-40…70 °C
Mechanical Durability
10000000 cycles
Vibration Resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Mounting Diameter
22 mm
Shape of Signaling Unit Head
Round
Cap/Operator or Lens Colour
Blue
Bezel Material
Dark grey plastic
Head Type
Standard
Device Short Name
ZB5
This spec is not available in the specification table.
Product or Component Type
Head for illuminated push-button
This spec is not available in the specification table.
Overvoltage Category
Class II conforming to IEC 60536
This spec is not available in the specification table.
Ambient Air Temperature for Storage
-40…70 °C
This spec is not available in the specification table.
Marking
Unmarked
This spec is not available in the specification table.
Device Presentation
Basic sub-assemblies
This spec is not available in the specification table.
Certifications
LROS (Lloyds register of shipping) DNV GL BV CSA UL listed
This spec is not available in the specification table.
IK Degree of Protection
IK05 conforming to IEC 62262
This spec is not available in the specification table.
Product Compatibility
Universal LED
This spec is not available in the specification table.
Shock Resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
This spec is not available in the specification table.
Resistance to High Pressure Washer
7000000 Pa at 55 °C, distance : 0.1 m
This spec is not available in the specification table.
Electrical Composition Code
M1 for <6 contacts using single blocks in front mounting with integral LED M2 for <6 contacts using single and double blocks in front mounting with integral LED M6 for <2 contacts using single blocks in front mounting with integral LED and transformer M10 for <2 contacts using single blocks in front mounting with integral LED MF1 for <2 contacts using single blocks in front mounting with integral LED MR1 for <2 contacts using single blocks in rear mounting with integral LED
This spec is not available in the specification table.
Main Group
Illum push-button
This spec is not available in the specification table.
Group of Product
Flush push integral LED
This spec is not available in the specification table.
Protective Treatment
TC
This spec is not available in the specification table.
NEMA degree of Protection
NEMA 13 NEMA 4X
This spec is not available in the specification table.
Operator Additional Information
With plain lens
This spec is not available in the specification table.
Type of Operator
spring return
This spec is not available in the specification table.
Operator Profile
Blue flush, unmarked
This spec is not available in the specification table.
CAD Overall Width
29 mm
This spec is not available in the specification table.
CAD Overall Height
29 mm
This spec is not available in the specification table.
CAD Overall Depth
30 mm
This spec is not available in the specification table.
Station Name
XALD 1...5 cut-outs XALK 2...5 cut-outs
This spec is not available in the specification table.
Product Description

Schneider Electric ZB5AW363 Head for Illuminated Push Button, Harmony XB5, Plastic, Blue Flush, 22mm, Universal Led, Spring Return, Plain Lens

This Harmony XB5, plain lens illuminated blue flush head for universal LED operates with a spring return / impulse mechanism. This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
