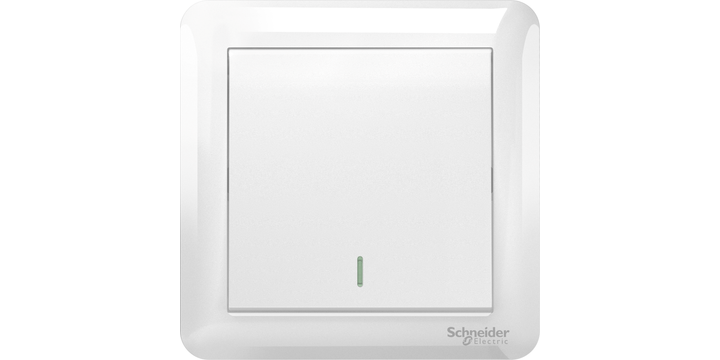

Schneider Electric A3G31B3A_WE_G11 10AX 250V 1 Gang Intermediate Switch, White
Schneider Electric A3G31B3A_WE_G11 10AX 250V 1 Gang Intermediate Switch, White
Brand: | SCHNEIDER ELECTRIC |
Model: | A3G31B3A_WE_G11 |
Product Description
Schneider Electric A3G31B3A_WE_G11 10AX 250V 1 Gang Intermediate Switch, White
Key Specifications:
- Product Type: Switch
- Device Application: Control switch
- Switch Function: Intermediate
- Load Types:
- Fluorescent lamp
- Inductive
- Resistive
- Incandescent lamp
- Colour Tint: White
Technical Details:
- Device Mounting: Flush
- Cable Cross Section:
- 4 mm² stranded cable
- 2.5 mm² solid cable
- 2.5 mm² stranded cable
- 4 x 4 mm² solid cable for AC
- Rated Current: 10 AX at 250 V AC
- Number of Gangs: 1 gang
- Material:
- Polycarbonate: Grid plate
- Polycarbonate: Base
- Polycarbonate: Dolly
- Polycarbonate: Surround
- Polycarbonate: Actuator
- Connections - Terminals: Screw terminal
- Embedding Depth: 24.9 mm
- Dimensions:
- Width: 86 mm
- Height: 86 mm
- Depth: 35.6 mm
- Environment:
- Maximum Ambient Air Temperature for Operation: 35 °C
- Relative Humidity: 0…95 %
- Operating Altitude: 5000 m
Certifications and Standards:
- Product Certifications: IEC
- Standards:
- BS EN 60669-1
- MS IEC 60669-1
- IEC 60669-1
US $ 19.34
