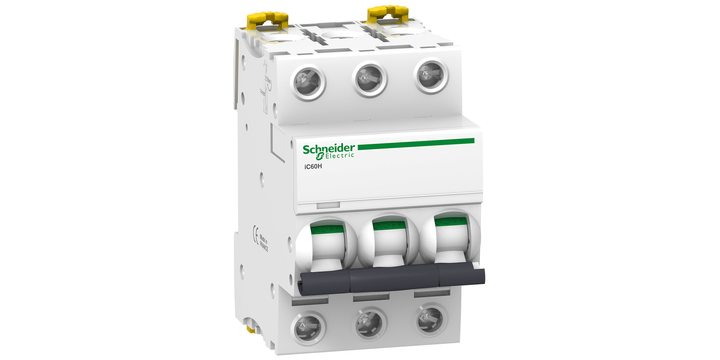

Schneider Electric A9F84325 iC60H - Miniature Circuit Breaker - 3P - 25A - C Curve
Schneider Electric A9F84325 iC60H - Miniature Circuit Breaker - 3P - 25A - C Curve
Brand: | SCHNEIDER ELECTRIC |
Model: | A9F84325 |
Product Description
Schneider Electric A9F84304 iC60H - Miniature Circuit Breaker - 3P - 4A - C Curve
- Type: Multistandard low voltage miniature circuit breaker (MCB)
- Terminals: Double tunnel terminals
- Poles: 3P (3 protected poles)
- Rated Current: 25A
- Tripping Curve: C
- Short Circuit Breaking Capacity:
- Up to 30kA at 220VAC to 240VAC (conforming to EN/IEC 60947-2)
- Up to 10,000A at 400VAC (conforming to EN/IEC 60898-1)
- Standards Compliance:
- Industrial: EN/IEC 60898-1
- Residential: EN/IEC 60947-2
- Protection: Safeguards against short circuit and overload current
- VisiTrip Indicator: Displays the faulty circuit to minimize intervention time
- VisiSafe Green Strip: Ensures the physical opening of contacts for safe maintenance
- Fast Closing Mechanism: Operates independently of manual control to enhance service life
- Electrical Endurance: Up to 10,000 cycles
- Mechanical Endurance: Up to 20,000 cycles
- Ui Rated Insulation Voltage: 500VAC
- Limitation Class: 3 (according to EN/IEC 60898-1), reducing downstream circuit protection costs
- Mounting: Clips onto DIN rail
- Width: 6 pitches of 9mm
- Pollution Degree: 3
- Overvoltage Category: IV
- Color: White (RAL9003)
- Dimensions:
- Width: 54mm
- Height: 85mm
- Depth: 78.5mm
- Weight: 0.375kg
- Degree of Protection: IP20 (terminals, according to IEC/EN 60529)
- Operating Temperature: -35°C to 70°C
- Storage Temperature: -40°C to 85°C
Features:
- Multistandard Compliance: Meets both industrial (EN/IEC 60898-1) and residential (EN/IEC 60947-2) standards for versatile applications.
- High Short-Circuit Protection: Capable of handling significant fault conditions with high breaking capacities.
- Efficient Fault Detection: VisiTrip indicator facilitates quick identification of faults, improving maintenance efficiency.
- Safe Operation: VisiSafe green strip ensures safe maintenance by confirming the circuit is isolated.
- Durable Design: High endurance ratings ensure long service life and reliability.
- Temperature Tolerance: Designed to operate and store in a wide temperature range, suitable for various environments.
US $ 152.61
Quantity:
EA
