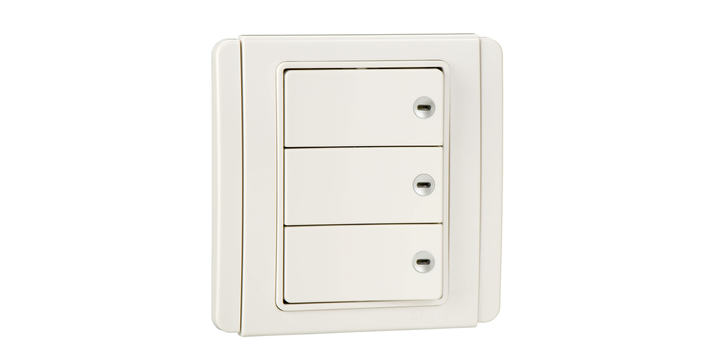

Schneider Electric E3033H1_EWWW_G11 Neo 250V 10A 3Gang 1way Switch With White Led
Schneider Electric E3033H1_EWWW_G11 Neo 250V 10A 3Gang 1way Switch With White Led
Product Description

Schneider Electric E3033H1_EWWW_G11 Neo 250V 10A 3Gang 1way Switch With White Led

  • Range: Neo
  • Product Type: Control Switch
  • Device Application: Control
  • Wiring Device Mounting: Surface, Flush
  • Switch Function: 1-way
  • Switch Application: Switch
  • Load Type:
    • Incandescent Lamp
    • Fluorescent Lamp
    • Resistive
    • Inductive
  • Bulb Type: LED (white)
  • Colour Tint: White
  • Rated Current: 10 A at 250 V AC, 50/60 Hz
  • Number of Gangs: 3 gangs horizontal
  • Material:
    • Brass: Metal parts
    • Polycarbonate: Plastic part
    • Steel: Metal parts
  • Clamping Connection Capacity:
    • 3 x 2.5 mm² for solid cable(s)
    • 3 x 2.5 mm² for stranded cable(s)
    • 4 x 1.5 mm² for solid cable(s)
    • 4 x 1.5 mm² for stranded cable(s)
  • Connections - Terminals: Pillar terminals
  • Dimensions:
    • Width: 87 mm
    • Height: 87 mm
    • Depth: 36 mm
    • Embedding Depth: 23.5 mm
  • Environment:
    • Ambient Air Temperature for Operation: 0…40 °C
    • Relative Humidity: 0…95 %
    • Environmental Characteristic: Indoor use
  • Standards:
    • EN 60669-1
    • GB 16915.1
    • IEC 60669-1
