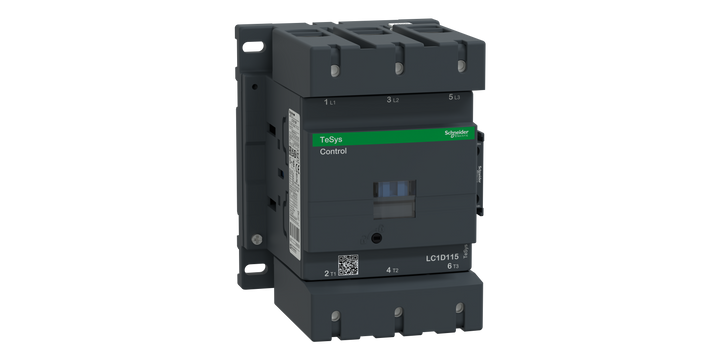

Schneider Electric LC1D115U7 Tesys D Contactor - 3P(3 No) - AC-3 - <= 440 V 12 a - 240 V Ac 50/60 Hz Coil
Schneider Electric LC1D115U7 Tesys D Contactor - 3P(3 No) - AC-3 - <= 440 V 12 a - 240 V Ac 50/60 Hz Coil
Product Description

Schneider Electric LC1D115U7 Tesys D Contactor - 3P(3 No) - AC-3 - <lt/>= 440 V 12 a - 240 V Ac 50/60 Hz Coil

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 240V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified), power connection by screw connectors 2 inputs, control connection by screw clamp terminals. For operating rates until 2400 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
