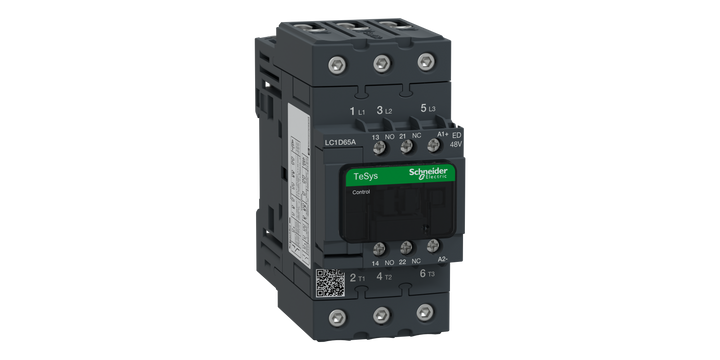

Schneider Electric LC1D65AED Tesys D Contactor - 3P(3 No) - AC-3 - <= 440 V 65 a - 48 V Dc Standard Coil
Schneider Electric LC1D65AED Tesys D Contactor - 3P(3 No) - AC-3 - <= 440 V 65 a - 48 V Dc Standard Coil
Product Description

Schneider Electric LC1D65AED Tesys D Contactor - 3P(3 No) - AC-3 - <= 440 V 65 a - 48 V Dc Standard Coil

The TeSys Deca contactor features 3 poles (3NO) for motor control applications up to 65A and 690V AC-3 (30kW @ 400V).

Specifications:

  • Coil Voltage: 48V DC with transient suppressor module
  • Auxiliary Contacts: 1NO + 1NC (NC mirror certified)
  • Power Connection: EverLink BTR screw connectors
  • Control Connection: Screw clamp terminals
  • Operating Rate: Up to 3600 cycles/hour
  • Temperature Range: Suitable for environments up to 60°C

Features:

  • Compact Size: 55mm width
  • Mounting Options: DIN-rail or screw fixing
  • Certifications: Multi-standard certified (IEC, UL, CSA, CCC, EAC, Marine)
  • Compliance: Green Premium compliant (RoHS/REACh)

This contactor ensures high reliability and durability for various motor control applications.
