Schneider Electric LC1DLKM7 Tesys LC1D.K Capacitor Duty Contactor - 3P - 20 Kvar - 415 V - 220 V Ac Coil
Schneider Electric LC1DLKM7 Tesys LC1D.K Capacitor Duty Contactor - 3P - 20 Kvar - 415 V - 220 V Ac Coil
Technical Data Sheets
Product Description

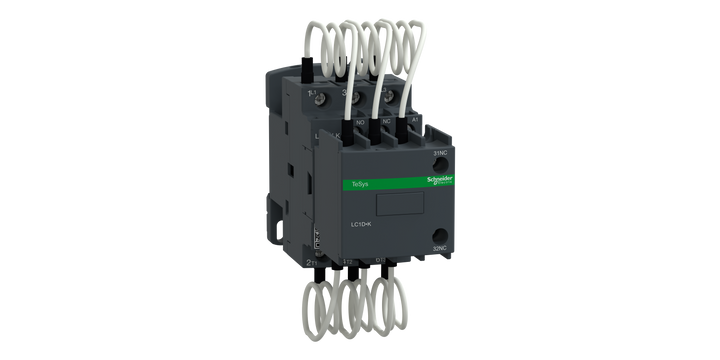

Schneider Electric LC1DLKM7 Tesys LC1D.K Capacitor Duty Contactor - 3P - 20 Kvar - 415 V - 220 V Ac Coil

TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 20kVAR@400V 50Hz (33kVAR@690V). It provides a 220V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Certified IEC 60947 and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).
