Brand: | SCHNEIDER ELECTRIC |
Model: | LXM16DU01M2X |

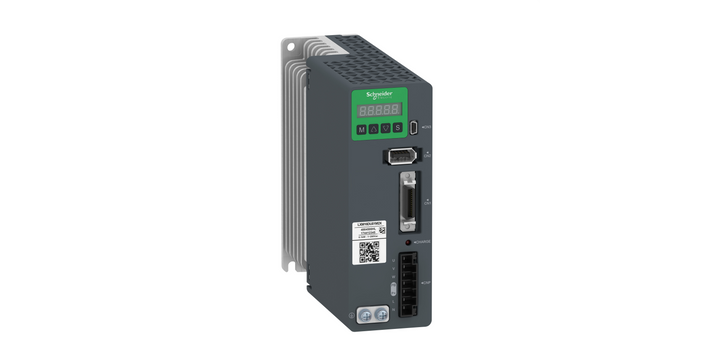

This motion servo drive belongs to Easy Lexium 16 range. It is a single phase servo drive, powered by 200V to 240V, its output power is 0.1kW. It operates via a PTI/PTO interface comprising 6 digital inputs and 3 digital outputs. Lexium 16 servo drive and BCH16 servo motor combinations are specially designed for easy integration & commissioning in your machine. Its nominal speed of rotation is 3000rpm, its maximum speed of rotation is 5000rpm. The Easy Lexium 16 servo drives have degree of protection IP 20. Its dimensions are 52mm wide, 150mm high, 155.2mm deep. It weighs 1kg. The Lexium 16 servo drive fits for simple machines with low and high speed position control applications such as printing, robot arm, sealing, pick and place. Its electromagnetic compatibility reaches a Level Class 3C3 according to EN/IEC 61800-3, it is compliant to standard EN/IEC 61800-5-1, and certified by CE. The combinations of servo motors with servo drives are based on the power class, both the servo motor and servo drive have the same power class. Easy Lexium 16 servo drive and BCH16 servo motor combinations are specially designed for easy integration & commissioning in your machine. Easy Lexium 16 servo drive and BCH16 servo motor combinations provide the right level of performance for the majority of simple motion control machines.
