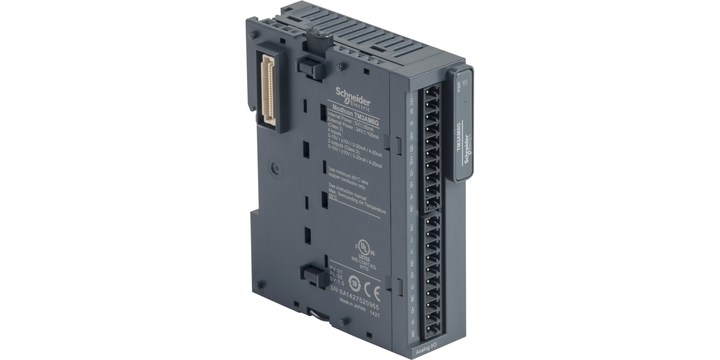

Schneider Electric TM3AM6G Io Analog Module, Modicon TM3, 4 Inputs, 2 Output, Spring, 24V Dc
Schneider Electric TM3AM6G Io Analog Module, Modicon TM3, 4 Inputs, 2 Output, Spring, 24V Dc
Brand: | SCHNEIDER ELECTRIC |
Model: | TM3AM6G |
Product Description
Schneider Electric TM3AM6G Io Analog Module, Modicon TM3, 4 Inputs, 2 Output, Spring, 24V Dc
- Series: Modicon TM3
- Type: Analog I/O Module
- Inputs: 4 (11-bit + sign resolution)
- Outputs: 2 (12-bit resolution)
- Rated Supply Voltage: 24V DC
- Current Consumption:
- Bus Connector: 55mA at 5V DC
- External Supply: 55mA, 100mA at 24V DC
- Insulation:
- Input to Supply: 1500V AC
- Input to Internal Logic: 500V AC
- Output to Supply: 1500V AC
- Output to Internal Logic: 500V AC
- Electrical Connection: Removable spring terminal with 3.18mm pitch adjustment for inputs and supply
- IP Rating: IP20
- Dimensions: 23.6mm (Width) x 70mm (Depth) x 90mm (Height)
- Weight: 0.1kg
- Certifications: CE
- Standards: EN/IEC 61131-2, EN/IEC 61010-2-201
- Compatibility: Modicon M221, Modicon M241, Modicon M251
- Mounting Options:
- Top Hat Rail Type TH35-15
- Top Hat Rail Type TH35-7.5 (conforming to IEC 60715)
- Plate or Panel with Fixing Kit
- Features:
- Designed for simple interlocking assembly
- Bus expansion connector for data and power distribution
Applications:
- Suitable for controlling variable speed drives and devices with current or voltage inputs.
US $ 568.36
