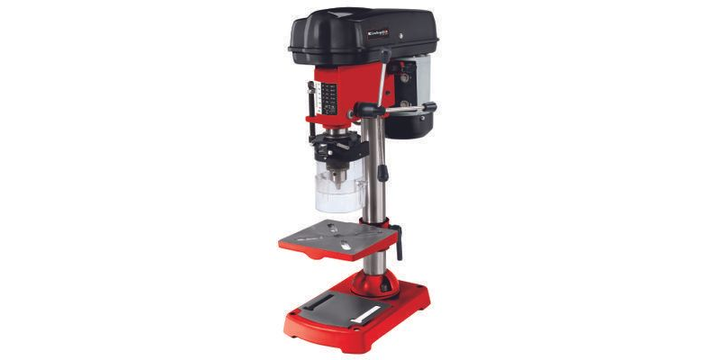

Einhell Bench Drill TC-BD 350
The Einhell TC-BD 350 pillar drill makes precise drilling easy and straightforward, in every material and in every situation. The three-arm drill lever ensures that the pressure is perfectly dosed at all time, and the depth stop is adjustable to ensure exact drill holes. The sturdy base provides good stability. The chip guard for drilling safety can be swung away easily. The features of the pillar drill, which has a 350 W power rating, include the infinitely adjustable drill table which needs no tools for adjustment and can be tilted and swiveled, the adjustable speed (580 to 2650 rpm in five steps) and the drill spindle with ball bearings for long-lasting use. A restart safeguard is provided by the ON/OFF switch with a zero voltage trip.
- - - - - - - - -- - - - - - - - -- - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Specifications
- Three-arm capstan for a good leverage effect at all times
- The drill table height is infinitely adjustable without tools
- Sturdy base to provide the equipment with good stability
- Easy foldable chip guard for drilling in safety
- ON/OFF switch with zero voltage trip as restart safeguard
- Adjustable depth stop for precise drilling
- Tilting and pivoting drill table for a wide range of drill holes
- Five speed settings 580 - 2650 rpm for adjusting to the marterial
- Drilling spindle with ball bearings for long-lasting use
- - - - - - - - -- - - - - - - - -- - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Technical details
- Three-arm capstan for a good leverage effect at all times
- The drill table height is infinitely adjustable without tools
- Sturdy base to provide the equipment with good stability
- Easy foldable chip guard for drilling in safety
- ON/OFF switch with zero voltage trip as restart safeguard
- Adjustable depth stop for precise drilling
- Tilting and pivoting drill table for a wide range of drill holes
- Five speed settings 580 - 2650 rpm for adjusting to the material
- Drilling spindle with ball bearings for long-lasting use
- Drilling depth: 50 mm
- Max. drill bit diameter: 13 mm
- Max. speed: 2650 min^-1
- Min. drill bit diameter: 1.5 mm
- Min. speed: 580 min^-1
- Power S2: 350 W
- Product weight: 13.86 Kg
- Projection: 104 mm
- Rotating range (drill table): 360 °
- - - - - - - - -- - - - - - - - -- - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
