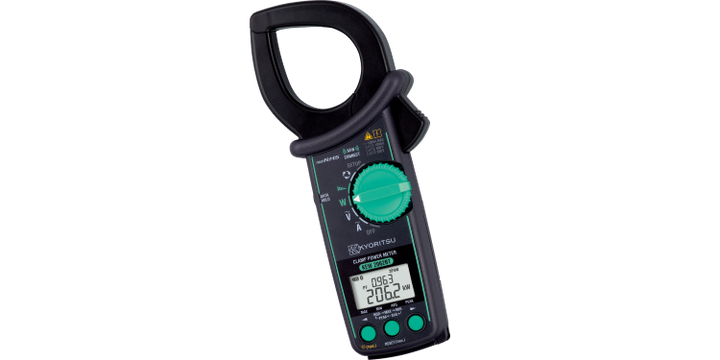

Kyoritsu 2062BT Power Clamp

• Wiring Connections: 1P2W, 1P3W, 3P3W, 3P4W
• Measurements and Parameters:
• AC Voltage (ACV):
• Range: 1000V
• Accuracy: ±0.7%rdg±3dgt (40.0 - 70.0Hz), ±3.0%rdg±5dgt (70.1Hz - 1kHz)
• Crest Factor: 1.7 or less
• AC Current (ACA):
• Range: 40.00/400.0/1000A (3 range auto)
• Accuracy: ±1.0%rdg±3dgt (40.0 - 70.0Hz), ±2.0%rdg±5dgt (70.1Hz - 1kHz)
• Crest Factor: 3 or less on 40.00A/400.0A range, 3 or less 1500A peak on 1000A range
• Frequency:
• Display Range: 40.0 - 999.9Hz
• Accuracy: ±0.3%rdg±3dgt
• Active Power:
• Range: 40.00/400.0/1000kW
• Accuracy: ±1.7%rdg±5dgt (Power Factor 1, sine wave, 45-65Hz)
• Apparent Power:
• Range: 40.00/400.0/1000kVA
• Accuracy: ±1dgt against each calculated value
• Sum errors of each channel: 3P3W: ±2dgt, 3P4W: ±3dgt
• Reactive Power:
• Range: 40.00/400.0/1000kVar
• Accuracy: ±1dgt against each calculated value
• Sum errors of each channel: 3P3W: ±2dgt, 3P4W: ±3dgt
• Power Factor:
• Display Range: -1.000 - 0.000 - +1.000
• Accuracy: ±1dgt against each calculated value
• Sum errors of each channel: 3P3W: ±2dgt, 3P4W: ±3dgt
• Phase Angle (1P2W only):
• Display Range: -180.0 - 0.0 - +179.9
• Accuracy: Within ±3.0°
• Harmonics RMS (Content rate):
• Analysis Order: 1st - 30th order
• Accuracy:
• 1 - 10th order: ±5.0%rdg ± 10dgt
• 11 - 20th order: ±10%rdg ± 10dgt
• 21 - 30th order: ±20%rdg ± 10dgt
• Total Harmonics (THD-R/THD-F):
• Display Range: 0.0% - 100.0%
• Accuracy: ±1dgt against the calculated results of each measured value
• Phase Rotation:
• ACV: 80 - 1100V (45 - 65Hz)
• Other Functions:
• MAX/MIN/AVG/PEAK, Data hold, Bluetooth®5.0, Backlight, Auto power off
• General:
• Communication Interface: Bluetooth®5.0
• Power Source: LR6 (AA)(1.5V) × 2
• Continuous Measuring Time: Approx. 58 hours
• Conductor Size: φ55mm max.
• Dimensions / Weight: 247(L) × 105(W) × 50(D) mm / Approx. 490g (including batteries)
• Applicable Standards: IEC 61010-1, IEC 61010-2-032, IEC 61326-1, 2-2 (EMC), IEC 60529 (IP40)
• CAT IV 300V / CAT III 600V / CAT II 1000V Pollution degree 2
• Accessories:
• 7290 (Voltage test lead set)
• 9198 (Carrying case)
• LR6(AA) × 2, Instruction Manual
