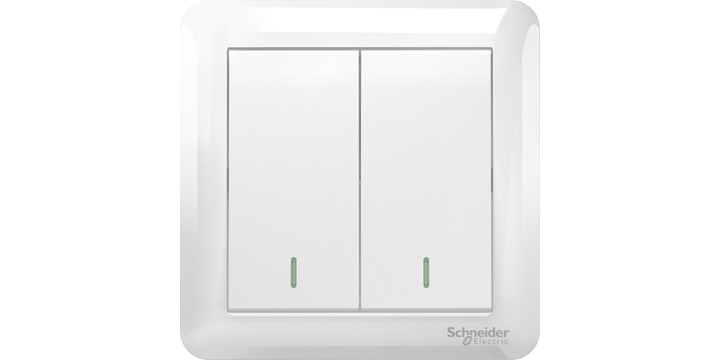

Schneider Electric A3G32B1A_WE_G11 10AX 250V 2 Gang 1 Way Switch, White
Schneider Electric A3G32B1A_WE_G11 10AX 250V 2 Gang 1 Way Switch, White
Product Description

Schneider Electric A3G32B1A_WE_G11 10AX 250V 2 Gang 1 Way Switch, White

Key Specifications:

  • Product Type: Switch
  • Device Application: Control switch
  • Switch Function: 1-way
  • Load Types:
    • Fluorescent lamp
    • Inductive
    • Incandescent lamp
    • Resistive
  • Colour Tint: White

Technical Details:

  • Device Mounting: Flush
  • Cable Cross Section:
    • 4 mm² stranded cable
    • 2.5 mm² solid cable
    • 2.5 mm² stranded cable
    • 4 x 4 mm² solid cable for AC
  • Rated Current: 10 AX at 250 V AC
  • Number of Gangs: 2 gangs
  • Material:
    • Polycarbonate: Grid plate
    • Polycarbonate: Base
    • Polycarbonate: Dolly
    • Polycarbonate: Surround
    • Polycarbonate: Actuator
  • Connections - Terminals: Screw terminal, Brass terminal
  • Embedding Depth: 24.9 mm
  • Dimensions:
    • Width: 86 mm
    • Height: 86 mm
    • Depth: 35.6 mm
  • Environment:
    • Maximum Ambient Air Temperature for Operation: 35 °C
    • Relative Humidity: 0…95 %
    • Operating Altitude: 5000 m

Certifications and Standards:

  • Product Certifications: IEC
  • Standards:
    • IEC 60669-1
    • MS IEC 60669-1
    • BS EN 60669-1
