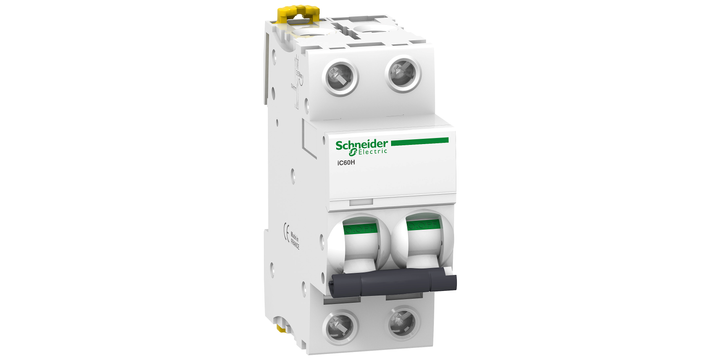

Schneider Electric A9F84203 iC60H - Miniature Circuit Breaker - 2P - 3A - C Curve

• Type: Multistandard low voltage miniature circuit breaker (MCB) with double tunnel terminals
• Poles: 2P (2 protected poles)
• Rated Current: 3A
• Tripping Curve: C
• Short Circuit Breaking Capacity:
• Up to 70kA at 220VAC to 240VAC (conforming to EN/IEC 60947-2)
• Up to 10,000A at 400VAC (conforming to EN/IEC 60898-1)
• Standards Compliance:
• Industrial: EN/IEC 60898-1
• Residential: EN/IEC 60947-2
• Protection: Provides protection against short circuit and overload current
• VisiTrip Indicator: Displays the faulty circuit to minimize intervention time
• VisiSafe Green Strip: Ensures physical opening of contacts for safe downstream maintenance
• Fast Closing Mechanism: Operates independently of manual control to extend the breaker’s service life
• Electrical Endurance: Up to 10,000 cycles
• Mechanical Endurance: Up to 20,000 cycles
• Ui Rated Insulation Voltage: 500VAC
• Limitation Class: 3 (according to EN/IEC 60898-1), which helps reduce downstream circuit protection costs
• Mounting: Can be clipped onto a DIN rail
• Width: 4 pitches of 9mm
• Pollution Degree: 3
• Overvoltage Category: IV
• Color: White (RAL9003)
• Dimensions:
• Width: 36mm
• Height: 85mm
• Depth: 78.5mm
• Weight: 0.25kg
• Degree of Protection: IP20 (terminals, according to IEC/EN 60529)
• Operating Temperature: -35°C to 70°C
• Storage Temperature: -40°C to 85°C

Features and Benefits

• Enhanced Protection: The MCB effectively protects circuits from short circuits and overloads, ensuring safety and reliability.
• Efficient Maintenance: VisiTrip and VisiSafe features allow for quick fault detection and safe maintenance, reducing downtime.
• Robust Performance: High short-circuit breaking capacity and durable endurance ratings make this MCB suitable for demanding applications.
• Versatile Application: Compliant with both industrial and residential standards, suitable for a range of installation environments.
• Durable Design: Withstanding extreme temperatures and offering high mechanical and electrical endurance, this MCB is built for long-term performance.
