Schneider Electric A9N26924 Acti 9 - Auxiliary Contact Oc Plus 1 Sd and of Ac Dc
Schneider Electric A9N26924 Acti 9 - Auxiliary Contact Oc Plus 1 Sd and of Ac Dc
Technical Data Sheets
Product Description

Schneider Electric A9N26924 Acti 9 - Auxiliary Contact Oc Plus 1 Sd and of Ac Dc

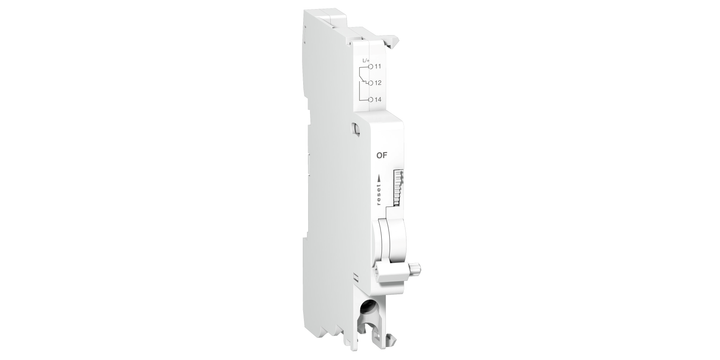

This Acti9 OF+SD/OF electric auxiliary is a double open/closed or fault indicator contact. It is compatible with Acti9 ranges such as C60, C40, C120, C40, iID, DT40, iDPN Vigi, SW60-DC, iTG40, and xC60. It comes with 1 changeover contact indicating the open or closed position (OF). It provides a remote position open/close and/or fault tripping indication of the associated device. It is a two-in-one product. The choice of OF+SD or OF+OF contact is made via the selector switch on front face. There is a mechanical state indicator and a test function button on the front face. The Ue rated operational voltage is 24VAC to 415VAC or 24VDC to 130VDC. The operating frequency is 50Hz or 60Hz.

The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. The width in 9mm pitches is 1. The product color is white (RAL9003). The dimensions are (W) 9mm x (H) 85.3mm x (D) 73.5mm. Product weight is 30g.

The degree of protection is IP20 at terminals and IP40 in enclosure. The operating temperature is -25°C to +50°C. The storage temperature is -40°C to +85°C. This product complies with EN/IEC 60947-5-1 standard.

RM 197.00
(exc. SST)
RM 208.82
(inc. SST)
