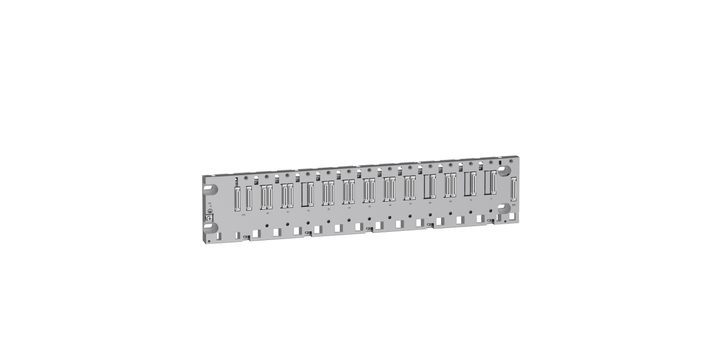

Schneider Electric BMEXBP1200 Rack, Modicon X80, 12 Slots, Ethernet Backplane

• Series: Modicon X80
• Type: Dual X-bus and Ethernet Backplane
• Slots:
• 8 X-bus slots (for any modules)
• 4 X-bus slots (for X-bus modules only)
• Power Consumption: 4.22W
• Current:
• 164mA at 24V DC
• 86mA at 3.3V DC
• Connector: 1 XBE connector for expansion module
• Temperature Range: 0°C to +60°C
• Protection Rating: IP20
• Weight: 1.398kg
• Standards Compliance:
• EN 61131-2
• EN 61000-6-4
• EN 61000-6-2
• EN 61010-2-201
• Compatibility:
• X80 power supply
• Modicon M340 processor
• Modicon M580 processor
• Modicon X80 modules
• Applications:
• Smart Infrastructure
• Water and Waste Water
• Consumer Packaged Goods
• Mining Minerals Metals
• Data Centers
• Power Generation
• Features:
• Supports a wide range of modules
• Can be extended with an XBE slot
• Operates within standard temperature range
• IP20 rating for protection
• Reduces maintenance and training costs
