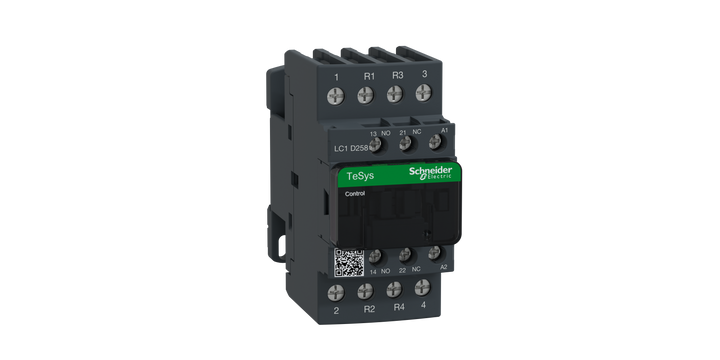

Schneider Electric LC1D258E7 Tesys D Contactor - 4P(2 No + 2 Nc) - AC-1 - <= 440 V 40 a - 48 V Ac Coil
Schneider Electric LC1D258E7 Tesys D Contactor - 4P(2 No + 2 Nc) - AC-1 - <= 440 V 40 a - 48 V Ac Coil
Product Description

Schneider Electric LC1D258E7 Tesys D Contactor - 4P(2 No + 2 Nc) - AC-1 - <lt/>= 440 V 40 a - 48 V Ac Coil

TeSys D contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 40A/690V AC-1. It provides a 48V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
