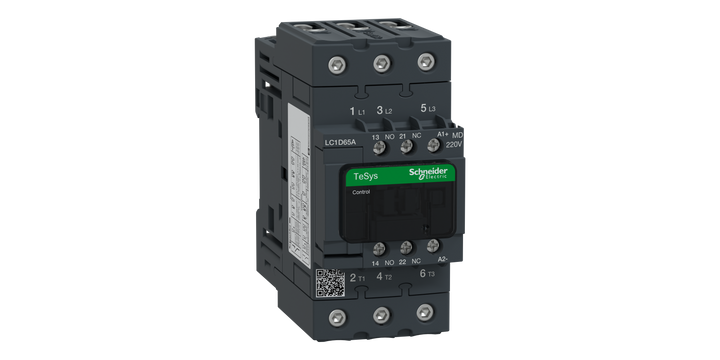

Schneider Electric LC1D65AMD Contactor, Tesys Deca, 3P(3 No), AC-3, <=400V, 65A, 220V Dc Standard Coil, Screw Clamp Terminals
Schneider Electric LC1D65AMD Contactor, Tesys Deca, 3P(3 No), AC-3, <=400V, 65A, 220V Dc Standard Coil, Screw Clamp Terminals
Product Description

Schneider Electric LC1D65AMD Contactor, Tesys Deca, 3P(3 No), AC-3, <=400V, 65A, 220V Dc Standard Coil, Screw Clamp Terminals

The TeSys Deca contactor features 3 poles (3NO) designed for motor control applications up to 65A and 690V AC-3 (30kW @ 400V).

Specifications:

  • Coil Voltage: 220V DC with transient suppressor module
  • Auxiliary Contacts: 1NO + 1NC (NC mirror certified)
  • Power Connection: EverLink BTR screw connectors
  • Control Connection: Screw clamp terminals
  • Operating Rate: Up to 3600 cycles/hour
  • Temperature Range: Suitable for environments up to 60°C

Features:

  • Compact Size: 55mm width
  • Mounting Options: DIN-rail or screw fixing
  • Certifications: Multi-standard certified (IEC, UL, CSA, CCC, EAC, Marine)
  • Compliance: Green Premium compliant (RoHS/REACh)

This contactor provides high reliability and durability for a wide range of motor control applications.
