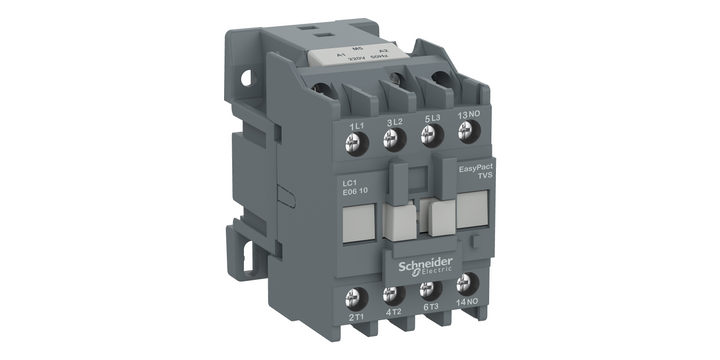

Schneider Electric LC1E0910Q5 Easypact Tvs Contactor 3P(3 No) - AC-3 - <= 440 V 9A - 380 V Ac Coil
Schneider Electric LC1E0910Q5 Easypact Tvs Contactor 3P(3 No) - AC-3 - <= 440 V 9A - 380 V Ac Coil
Product Description

Schneider Electric LC1E0910Q5 Easypact Tvs Contactor 3P(3 No) - AC-3 - <= 440 V 9A - 380 V Ac Coil

  • Type: 3 poles for motor applications
  • Rated Current: Up to 9A
  • Power Rating: 4 kW @ 440V
  • Coil Voltage: 380V AC (50Hz)
  • Auxiliary Contacts: 1NO built-in
  • Connections: Power and control via screw clamp terminals
  • Width: 45mm
  • Operating Rate: Up to 1800 cycles/hour
  • Durability:
    • Electrical: 1.4 million cycles (AC-3)
    • Mechanical: 10 million cycles
  • Temperature Range: -5°C to 55°C
  • Mounting: DIN-rail mountable
  • Altitude: No derating up to 3000m
  • Certifications: Multi-standard certified (IEC, CCC, EAC)
  • Environmental Compliance: Green Premium compliant (RoHS/REACH)

This contactor ensures reliable motor control and durability in demanding applications.
