Schneider Electric LR97D07B Electronic Overload Relay for Motor Tesys - 1.2...7 a - 24 V AC/DC

View Brand

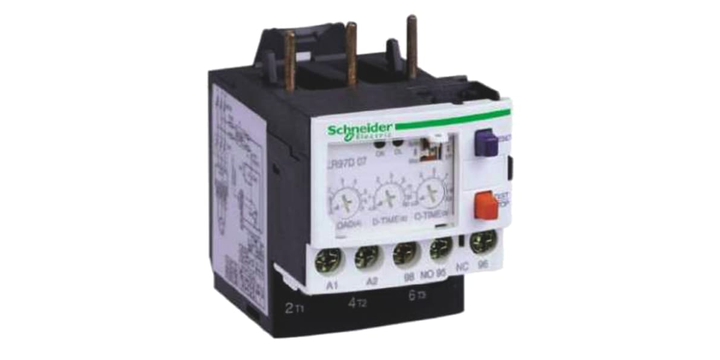

Schneider Electric LR97D07B Electronic Overload Relay for Motor Tesys - 1.2...7 a - 24 V AC/DC

Brand:	SCHNEIDER ELECTRIC
Model:	LR97D07B

Specifications

View other Overload Relays dimensions or variations

Ambient Air Temperature For Operation

-25 → +60 °C

[Us] Rated Supply Voltage

24 V ac/dc

Range

TeSys

Connections - Terminals

Screw

Width

45 mm

Series

LR97 D

Length

64.5 mm

Depth

67.5 mm

Mounting Style

Direct Contactor

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+60°C

Reset Method

Automatic, Manual

Power Rating

55 W

Contact Current Rating

7 A

Contact Voltage Rating

690 V ac

Normal State Configuration

NO/NC

Number Of Auxiliary Contacts

FLC Motor Rating

1.2 → 7 A

Product Description

RM 573.00

(exc. SST)

RM 607.38

(inc. SST)

Quantity:

This item is sold by

MY-2155714050

Shop by Specification Table

You can find items with similar specifications from the table below.

Overload Relays

53 Items

Standards

EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5, IEC 60255-17 IEC 60947-4-1 IEC 60255-8 VDE 0660 EN 60947-4-1, EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495, EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 EN 50495, EN/IEC 60947-4-1 EN/IEC 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495

[Ui] Rated Insulation Voltage

Power circuit: 600 V AC conforming to CSA Power circuit: 600 V AC conforming to UL Power circuit: 690 V AC conforming to IEC 60947-4-1, Power circuit: 1000 V AC conforming to IEC 60947-4, Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1, Power circuit: 1000 V conforming to IEC 60947-4-1 Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL, Power circuit: 1000 V conforming to IEC 60947-4-1

Ambient Air Temperature For Operation

-20…55 °C without derating conforming to IEC 60947 -30…60 °C with derating conforming to IEC 60947, -20…55 °C conforming to IEC 60255-8, -20…60 °C without derating conforming to IEC 60947-4-1, -25 → +60 °C, -20 → +60 °C

[Ith] Conventional Free Air Thermal Current

6 A for signalling circuit, 3 A for signalling circuit, 5 A for signalling circuit, 3 A for control circuit, 5 A for control circuit

Thermal Protection Adjustment Range

80…104 A, 30…40 A, 30…38 A, 48…65 A, 110…140 A

[Us] Rated Supply Voltage

100...120 V AC, 200...240 V AC, 24 V DC, 24 V ac/dc, 690 V ac
