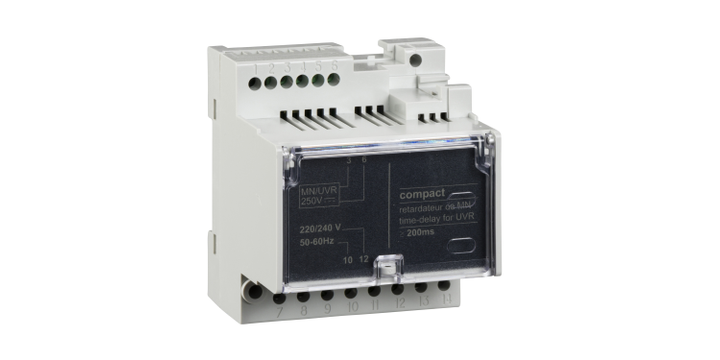

Schneider Electric LV429427 for Voltage Release Mn - Time Delay Relay
Schneider Electric LV429427 for Voltage Release Mn - Time Delay Relay
Brand: | SCHNEIDER ELECTRIC |
Model: | LV429427 |
Specifications
Please select at least one specification below.
Device Short Name
MN delay unit
Product Or Component Type
Time delay relay
Time Delay Range
200 ms
Device Application
Control
This spec is not available in the specification table.
Voltage Release Type
Undervoltage release
This spec is not available in the specification table.
Mounting Mode
External mounting
This spec is not available in the specification table.
[Uc] Control Circuit Voltage
220...240 V AC 50/60 Hz
This spec is not available in the specification table.
Range Compatibility
ComPact ComPact NSX
PowerPact PowerPact Multistandard
ComPact ComPact NSX DC
EasyPact EasyPact CVS
ComPact ComPact NSXm
This spec is not available in the specification table.
Impulse Duration
200 ms
This spec is not available in the specification table.
Response Time
<= 200 ms
This spec is not available in the specification table.
Supply Holding Power
4.5 VA
This spec is not available in the specification table.
Supply Inrush Power
200 VA
This spec is not available in the specification table.
Threshold Tripping Voltage
0.35...0.7 x Un opening
0.85 x Un closing
This spec is not available in the specification table.
Product Description
RM 1,194.50
Quantity:
EA
