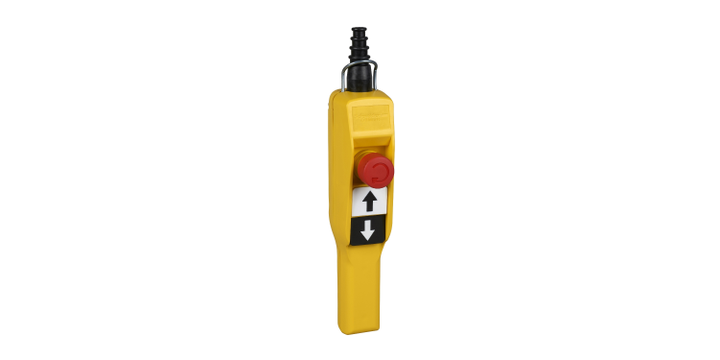

Schneider Electric XACA2014 Harmony Xac, Pendant Control Station, Plastic, Yellow Pistol Grip, 2 Push Buttons + 1 Emergency Stop
Schneider Electric XACA2014 Harmony Xac, Pendant Control Station, Plastic, Yellow Pistol Grip, 2 Push Buttons + 1 Emergency Stop
Brand: | SCHNEIDER ELECTRIC |
Model: | XACA2014 |
Specifications
Please select at least one specification below.
Terminal Identifier
(13-14)NO
(11-12)NC
Product Certifications
UL
CSA
Ik Degree Of Protection
IK08 conforming to EN 50102
Product Compatibility
ZB2BE101 for each direction
ZB2BE102 for emergency stop
Terminals Description Iso N°1
(13-14)NO
Control Station Composition
2 push-buttons + 1 emergency stop
Enclosure Material
Polypropylene
Control Station Colour
Yellow
Control Type
Intuitive
This spec is not available in the specification table.
Device Short Name
XACA pistol grip
This spec is not available in the specification table.
Product Or Component Type
Pendant control station
This spec is not available in the specification table.
Range Of Product
Harmony XAC
This spec is not available in the specification table.
Standards
EN/ISO 13850: 2006
EN/IEC 60204-32
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/IEC 60947-5-5
UL 508
This spec is not available in the specification table.
[Ui] Rated Insulation Voltage
600 V (pollution degree 3) conforming to IEC 60947-1
This spec is not available in the specification table.
[Uimp] Rated Impulse Withstand Voltage
6 kV conforming to IEC 60947-1
This spec is not available in the specification table.
Connections - Terminals
Screw clamp terminals, 1 x 2.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end
This spec is not available in the specification table.
Overvoltage Category
Class II conforming to IEC 61140
This spec is not available in the specification table.
Ip Degree Of Protection
IP65 conforming to IEC 60529
This spec is not available in the specification table.
Ambient Air Temperature For Operation
-25…70 °C
This spec is not available in the specification table.
Mechanical Durability
1000000 cycles
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…70 °C
This spec is not available in the specification table.
Shock Resistance
100 gn conforming to IEC 60068-2-27
This spec is not available in the specification table.
Vibration Resistance
15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
This spec is not available in the specification table.
Rated Operational Power In W
40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
This spec is not available in the specification table.
Electrical Circuit Type
Control circuit
This spec is not available in the specification table.
Cable Entry
Rubber sleeve with stepped entry 7…15 mm
This spec is not available in the specification table.
Protective Treatment
TH
This spec is not available in the specification table.
Contact Operation
Slow-break
This spec is not available in the specification table.
Short-Circuit Protection
10 A fuse protection by cartridge fuse type gG
This spec is not available in the specification table.
Contact Code Designation
A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A
Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
This spec is not available in the specification table.
[Ithe] Conventional Enclosed Thermal Current
10 A
This spec is not available in the specification table.
Maximum Resistance Across Terminals
25 MOhm
This spec is not available in the specification table.
Operating Force
13…15 N
This spec is not available in the specification table.
Control Station Application
Control of single speed hoist motor
This spec is not available in the specification table.
Mechanical Interlocking
With mechanical interlocking
This spec is not available in the specification table.
Control Station Type
Double insulated
This spec is not available in the specification table.
Enclosure Type
Complete ready for use
This spec is not available in the specification table.
Control Button Type
First push-button 1 NO raise, slow
Second push-button 1 NO lower, slow
Emergency stop push-button Ø 30 mm 1 NC trigger action
This spec is not available in the specification table.
Terminals Description Iso N°2
(11-12)NC
This spec is not available in the specification table.
Product Description
RM 726.00
(exc. SST)
RM 769.56
(inc. SST)
