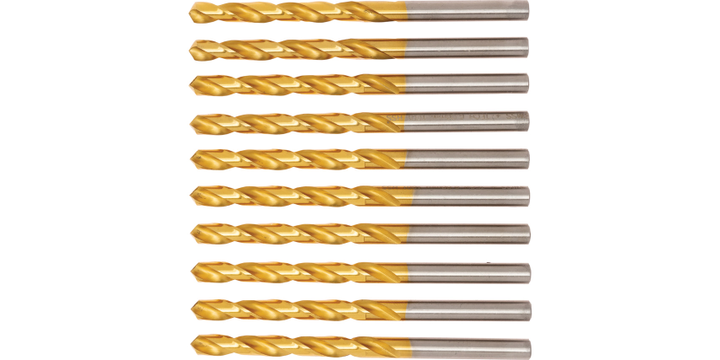

Swisstech SWT1250045A Jobber Drill, 4.5Mm, Normal Helix, High Speed Steel, Tin
Swisstech SWT1250045A Jobber Drill, 4.5Mm, Normal Helix, High Speed Steel, Tin
Specifications
infotip-icon
View other Drill Bits & Drill Bit Sets dimensions or variations
Please select at least one specification below.
Material
High Speed Steel
Overall Length
80 mm
Finish/Coating
TiN
Helix Angle
28°
Cutting Direction
Right Hand
Standards Met
BS 328 DIN 1412A DIN 338
Number of Flutes
2
Coolant Delivery
External
Drill Diameter Metric
4.5 mm
Drill Diameter Tolerance
h8
Flute Construction
Ground Flute
Flute Length
47 mm
Helix Type
Normal Helix
Flute Type
Spiral
Point Angle
118°
Point Type
Thinned Chisel Edge
Shank Diameter Tolerance
f11
Web Thickness
Standard
