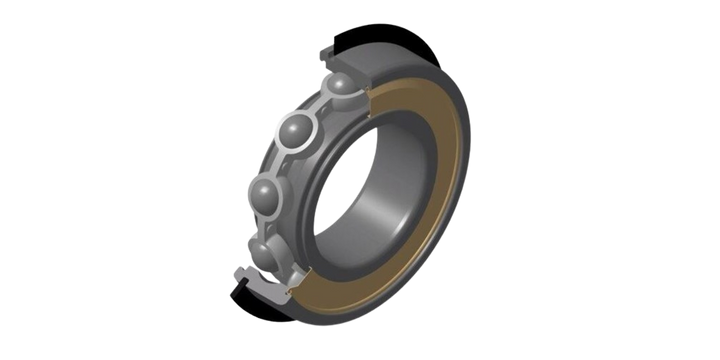

Ntn 6202ZNR Deep groove ball bearing, radial contact, pressed steel cage, snap ring & groove on outer diameter, shield on one side
Brand NTN
d - Internal diameter 15 mm
D - External diameter 35 mm
B - Bearing/Inner ring width 11 mm
a min - Min position Groove 1,9 mm
a max - Max position groove 2,06 mm
rs - Min fillet radius 0,6 mm
rNs - Min fillet radius 0,5 mm
D3 - Max bottom groove diameter 33,17 mm
b min - Min groove width 1,35 mm
b max - Max groove width 1,65 mm
r0 max - Max bottom groove radius 0,4 mm
D4 max - Max outer diameter of assembled stop ring 39,7 mm
f - Stop ring thickness 1,12 mm
Snap ring reference R35
Radial clearance class CN
Mass 0,045 kg
ex-stock subject to prior sales otherwise 6-8 months
¥ 55.05
| Units | 折扣 | 单价 |
|---|---|---|
| 1 | - | ¥ 55.05 |
