SCHNEIDER ELECTRIC/施耐德电气 BMXAMO0410H 模拟隔离高电平输出模块，MODICON X80，4 O，0 至 20MA，4 至 20MA，10V 正或负，恶劣环境
SCHNEIDER ELECTRIC/施耐德电气 BMXAMO0410H 模拟隔离高电平输出模块，MODICON X80，4 O，0 至 20MA，4 至 20MA，10V 正或负，恶劣环境
产品描述

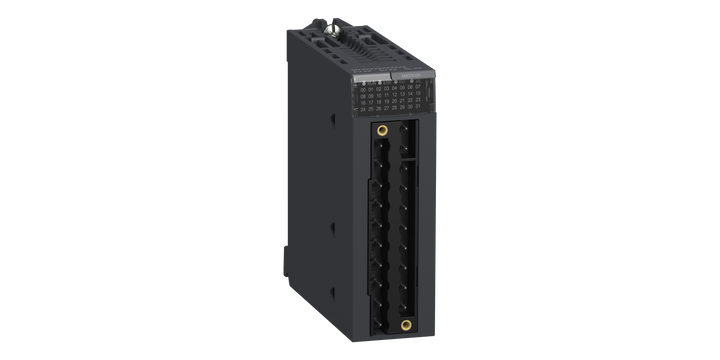

Schneider Electric BMXAMO0410H Analog Isolated High Level Output Module, Modicon X80, 4 O, 0 to 20mA, 4 to 20mA, 10V Positive or Negative, Severe Environment
- Series: Modicon X80
- Type: Analog Isolated Output Module
- Output Channels: 4
- Temperature Range: -25°C to +70°C / -13°F to 158°F
- IP Rating: IP20
- MTBF: 1,058,335 hours
- Dimensions: 32mm (Width) x 100mm (Depth) x 86mm (Height)
- Weight: 0.150kg
- Electrical Connection: 20-way connector
- Applications: Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power Generation, Energies and Chemicals, Data Centers
- Certifications: CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy
- Standards: EN 61000-6-5, EN 61850-3
- Compatibility: Modicon M340, M580 (Local or Remote I/O) PLCs with 20-way caged, screw clamp, or spring-type removable terminal block
- Installation: Must be installed on the rack and fixed with 2 screws
Features:
- Rugged Design: Suitable for harsh environments
- Common Platform: Reduces maintenance and training costs with consistent spare parts and training across various Programmable Automation Controllers (PACs)
¥ 12143.50
| Units | 折扣 | 单价 |
|---|---|---|
| 1 | - | ¥ 12143.50 |
