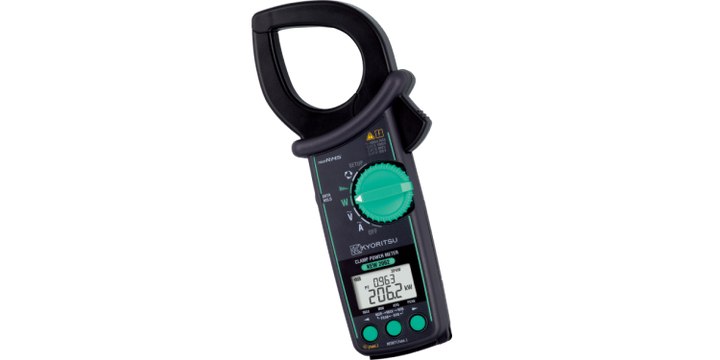

Kyoritsu 2062 Power Clamp
Brand:
KYORITSU
Model:
2062
Product Description

Kyoritsu 2062 Power Clamp

  • Wiring Connections: 1P2W, 1P3W, 3P3W, 3P4W
  • Measurements and Parameters:
  • AC Voltage (ACV):
    • Range: 1000V
    • Accuracy: ±0.7%rdg±3dgt (40.0 - 70.0Hz), ±3.0%rdg±5dgt (70.1Hz - 1kHz)
    • Crest Factor: 1.7 or less
  • AC Current (ACA):
    • Range: 40.00/400.0/1000A (3 range auto)
    • Accuracy: ±1.0%rdg±3dgt (40.0 - 70.0Hz), ±2.0%rdg±5dgt (70.1Hz - 1kHz)
    • Crest Factor: 3 or less on 40.00A/400.0A range, 3 or less 1500A peak on 1000A range
  • Frequency:
    • Display Range: 40.0 - 999.9Hz
    • Accuracy: ±0.3%rdg±3dgt
  • Active Power:
    • Range: 40.00/400.0/1000kW
    • Accuracy: ±1.7%rdg±5dgt (Power Factor 1, sine wave, 45 - 65Hz)
  • Apparent Power:
    • Range: 40.00/400.0/1000kVA
    • Accuracy: ±1dgt against each calculated value
      • Sum errors of each channel: 3P3W: ±2dgt, 3P4W: ±3dgt
  • Reactive Power:
    • Range: 40.00/400.0/1000kVar
    • Accuracy: ±1dgt against each calculated value
      • Sum errors of each channel: 3P3W: ±2dgt, 3P4W: ±3dgt
  • Power Factor:
    • Display Range: -1.000 - 0.000 - +1.000
    • Accuracy: ±1dgt against each calculated value
      • Sum errors of each channel: 3P3W: ±2dgt, 3P4W: ±3dgt
  • Phase Angle (1P2W only):
    • Display Range: -180.0 - 0.0 - +179.9
    • Accuracy: Within ±3.0°
  • Harmonics RMS (Content rate):
    • Analysis Order: 1st - 30th order
    • Accuracy:
      • 1 - 10th order: ±5.0%rdg ± 10dgt
      • 11 - 20th order: ±10%rdg ± 10dgt
      • 21 - 30th order: ±20%rdg ± 10dgt
  • Total Harmonics (THD-R/THD-F):
    • Display Range: 0.0% - 100.0%
    • Accuracy: ±1dgt against the calculated results of each measured value
  • Phase Rotation:
    • ACV: 80 - 1100V (45 - 65Hz)
  • Other Functions:
    • MAX/MIN/AVG/PEAK, Data hold, Backlight, Auto power off
  • General:
  • Power Source: LR6 (AA) (1.5V) × 2
  • Continuous Measuring Time: Approx. 58 hours
  • Conductor Size: φ55mm max.
  • Dimensions / Weight: 247(L) × 105(W) × 50(D) mm / Approx. 490g (including batteries)
  • Applicable Standards: IEC 61010-1, IEC 61010-2-032, IEC 61326-1, 2-2 (EMC), IEC 60529 (IP40)
    • CAT IV 300V / CAT III 600V / CAT II 1000V Pollution degree 2
  • Accessories:
    • 7290 (Voltage test lead set)
    • 9198 (Carrying case)
    • LR6 (AA) × 2, Instruction Manual
₱ 52,942
