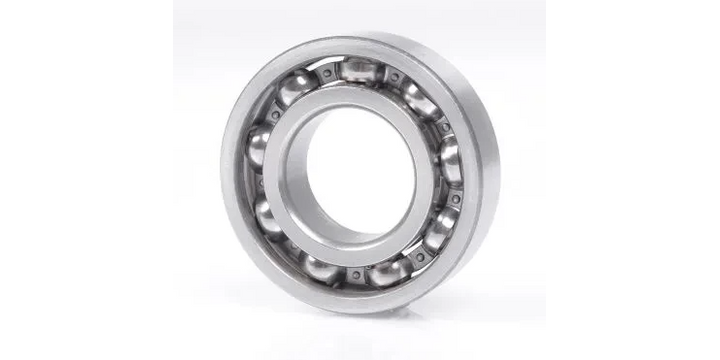

Ntn 6213 C3 Bearing

Product Specifications:

• Internal Diameter (d): 65 mm
• External Diameter (D): 120 mm
• Bearing/Inner Ring Width (B): 23 mm
• Min Fillet Radius (rs): 1.5 mm
• Radial Clearance Class: C3
• Mass: 0.99 kg

Product Performance:

• Dynamic Load (C): 63.5 kN
• Static Load (C0): 40 kN
• Fatigue Limit Load (Cu): 3.15 kN
• Coefficient (f0): 14.4
• Oil Lubrication Limit Speed (Nlim): 6500 tr/min
• Grease Lubrication Limit Speed (Nlim): 5500 tr/min
• Min Operating Temperature (Tmin): -40 °C
• Max Operating Temperature (Tmax): 120 °C

Abutment:

• Min Shoulder Diameter IR (da min): 73 mm
• Max Shoulder Diameter OR (Da max): 112 mm
• Max Shaft & Housing Fillet Radius (ra max): 1.5 mm
