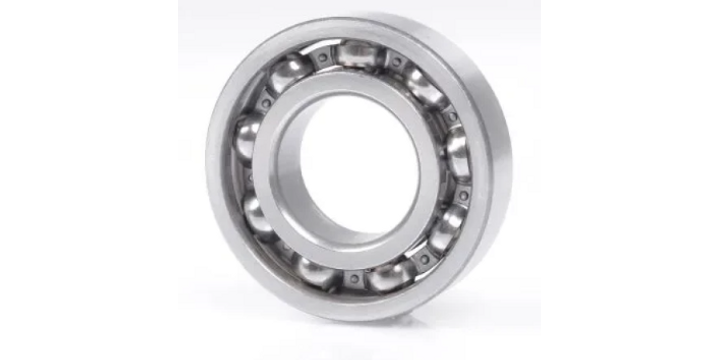

Ntn 6216.C3 Bearing

• Dimensions:
• Internal Diameter (d): 80 mm
• External Diameter (D): 140 mm
• Bearing/Inner Ring Width (B): 26 mm
• Min Fillet Radius (rs): 2 mm
• Radial Clearance Class: C3
• Mass: 1.4 kg

Product Performance:

• Dynamic Load (C): 80.5 kN
• Static Load (C0): 53 kN
• Fatigue Limit Load (Cu): 3.95 kN
• Coefficient (f0): 14.6
• Oil Lubrication Limit Speed (Nlim): 5300 rpm
• Grease Lubrication Limit Speed (Nlim): 4500 rpm
• Min Operating Temperature (Tmin): -40 °C
• Max Operating Temperature (Tmax): 120 °C

Abutment:

• Min Shoulder Diameter Inner Ring (da min): 89 mm
• Max Shoulder Diameter Outer Ring (Da max): 131 mm
• Max Shaft & Housing Fillet Radius (ra max): 2 mm
