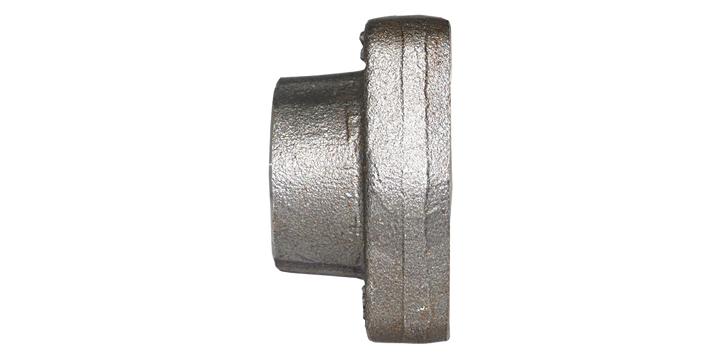

Oleo Tecnica Carbon Steel 4-Bolt Flange w/Metric Bolt Threads SAE-H-IT-N-3-F-14
Oleo Tecnica Carbon Steel 4-Bolt Flange w/Metric Bolt Threads SAE-H-IT-N-3-F-14
Brand: | Oleo Tecnica |
Model: | SAE-H-IT-N-3-F-14 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Types
4-Bolt Hydraulic Flange
Connection Style
NPT
Flange Size
1 1/2"
Configuration
Flat Side
Material
ST52.3 Carbon Steel
No. of Bolt Holes
4
Code
61
Series
3000
Working Pressure
34 - 345
bar
Screw Type
Socket Head Cap Screw
This spec is not available in the specification table.
Screw Size
M12
This spec is not available in the specification table.
Screw Length
45
mm
This spec is not available in the specification table.
Screw Torque (NM)
130
This spec is not available in the specification table.
Product Description
Oleo Tecnica Carbon Steel, 4-Bolt Flange w/Metric Bolt Threads, Sae J518 Standard
Oleo Tecnica Carbon Steel ST52.3 Sae Threaded 4-Bolt Flange Code 61 3000 Psi, 1 1/2 Npt Flat Side, 4-Bolt Flange w/Metric Bolt Threads, Sae J518 Standard
Technical Spec
- Netto Weight 1.5 KG
- Unit Dimension 7.8 X 4.5 X 9.5 CM
- Height Dimension 9.500
- Length Dimension 7.800
- Width Dimension 4.500
- Dimension uom 7.800
₱ 770
Quantity:
EA
Stock:
10 EA in stock
In Seller's Warehouse
