Schneider Electric ATV630D37N4 Variable Speed Drive, Altivar Process ATV600, ATV630, 37kW, 50hp, 380 to 480V, IP21, Ul Type 1

View Brand

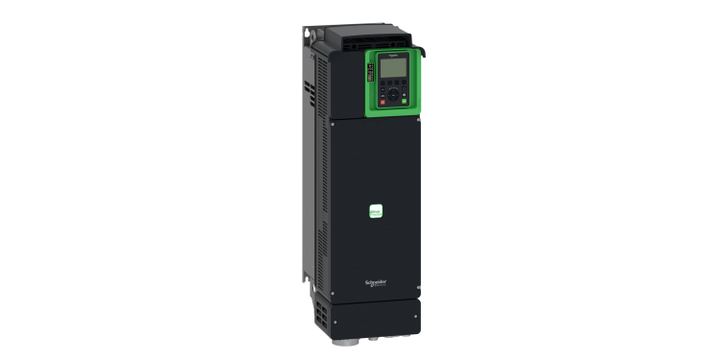

Schneider Electric ATV630D37N4 Variable Speed Drive, Altivar Process ATV600, ATV630, 37kW, 50hp, 380 to 480V, IP21, Ul Type 1

Brand:	SCHNEIDER ELECTRIC
Model:	ATV630D37N4

Specifications

View other Inverter Drives dimensions or variations

Local Signalling

3 LEDs for local diagnostic 3 LEDs (dual colour) for embedded communication status 4 LEDs (dual colour) for communication module status 1 LED (red) for presence of voltage

Range of Product

Altivar Process ATV600

Mounting Mode

Wall mount

Accuracy

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output

Standard

UL 508C IEC 61800-3 IEC 61800-3 environment 1 category C2 EN/IEC 61800-3 environment 2 category C3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1

IP Degree of Protection

IP00 conforming to IEC 61800-5-1 IP00 conforming to IEC 60529 IP21 (with kit VW3A9113) conforming to IEC 61800-5-1 IP21 (with kit VW3A9113) conforming to IEC 60529

Ambient Air Temperature for Operation

-10…40 °C (without derating) 40…60 °C (with derating factor)

Ambient Air Temperature for Storage

-25…70 °C

Operating Altitude

<= 1000 m without derating 1000...3000 m with current derating 1 % per 100 m

Vibration Resistance

1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6

[Us] Rated Supply Voltage

380...480 V - 15...10 %

Supply Frequency

50...60 Hz - 5...5 %

Switching Frequency

2.5...8 kHz with derating factor 2...8 kHz adjustable

Noise Level

76 dB

Transmission Rate

10, 100 Mbits 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

Power Dissipation in W

Forced convection: 5773 W Natural convection: 606 W at 380 V, switching frequency 2.5 kHz

Sampling Duration

2 ms +/- 0.5 ms (DI1...DI4) - discrete input 5 ms +/- 1 ms (DI5, DI6) - discrete input 5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input 10 ms +/- 1 ms (AO1) - analog output

Continuous Output Current

481 A at 2.5 kHz for normal duty 387 A at 2.5 kHz for heavy duty

Line Current

451 A at 380 V (normal duty) 366 A at 480 V (normal duty) 365 A at 380 V (heavy duty) 301 A at 480 V (heavy duty)

Apparent Power

279 kVA at 480 V (normal duty) 229 kVA at 480 V (heavy duty)

Maximum Transient Current

529 A during 60 s (normal duty) 581 A during 60 s (heavy duty)

Maximum Input Current

451.0 A

Linearity Error

AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input AO1, AO2: +/- 0.2 % for analog output

Width

598 mm

Device Short Name

ATV630

Product or Component Type

Variable speed drive

Depth

380 mm

Overvoltage Category

III

Pollution Degree

Relative Humidity

5…95 % without condensation conforming to IEC 60068-2-3

Marking

Analog Input Type

AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bits AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits AI2 voltage analog input: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits

Electromagnetic Compatibility

Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6

Motor Power kW

250 kW (normal duty) 220 kW (heavy duty)

Motor Power hp

400 hp normal duty 300 hp heavy duty

Minimum Switching Current

Relay output R1, R2, R3: 5 mA at 24 V DC

Insulation Resistance

> 1 MOhm 500 V DC for 1 minute to earth

Certifications

CSA UL TÜV

Operating Position

Vertical +/- 10 degree

Product Specific Application

Process and utilities

Shock Resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Protection Type

Thermal protection: motor Safe torque off: motor Motor phase break: motor Thermal protection: drive Safe torque off: drive Overheating: drive Overcurrent between output phases and earth: drive Overload of output voltage: drive Short-circuit protection: drive Motor phase break: drive Overvoltages on the DC bus: drive Line supply overvoltage: drive Line supply undervoltage: drive Line supply phase loss: drive Overspeed: drive Break on the control circuit: drive

Connector Type

RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP RJ45 (on the remote graphic terminal) for Modbus serial

Product Destination

Asynchronous motors Synchronous motors

Output Voltage

<= power supply voltage

Discrete Input Number

Analogue Input Number

Maximum Switching Current

Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC

Electrical Connection

Control: removable screw terminals 0.5...1.5 mm²/AWG 20...AWG 16 Line side: screw terminal 4 x 185 mm²/3 x 350 kcmil Motor: screw terminal 4 x 185 mm²/3 x 350 kcmil

Network Number of Phases

3 phases

Discrete Input Logic

Positive logic (source) (DI1...DI8), < 5 V (state 0), > 11 V (state 1) Negative logic (sink) (DI1...DI8), > 16 V (state 0), < 10 V (state 1)

Discrete Output Number

Regulation Loop

Adjustable PID regulator

Supply

External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection

Maximum Output Frequency

500 kHz

Physical Interface

Ethernet 2-wire RS 485

Input Compatibility

DI1...DI6: discrete input level 1 PLC conforming to IEC 61131-2 DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68 STOA, STOB: discrete input level 1 PLC conforming to IEC 61131-2

Permissible Temporary Current Boost

1.1 x In during 60 s (normal duty) 1.5 x In during 60 s (heavy duty)

Analogue Output Number

Analogue Output Type

Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits Software-configurable current DQ-, DQ+: 30 V DC Software-configurable current DQ-, DQ+: 100 mA

EMC Filter

Integrated with 50 m conforming to IEC 61800-3 category C3

Safety Function

STO (safe torque off) SIL 3

Method of Access

Slave Modbus TCP

Type of Cooling

Forced convection

Communication Port Protocol

Modbus TCP Modbus serial Ethernet

Exchange Mode

Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Variant

Standard version

Asynchronous Motor Control Profile

Variable torque standard Constant torque standard Optimized torque mode

Synchronous Motor Control Profile

Permanent magnet motor Synchronous reluctance motor

Nominal Switching Frequency

2.5 kHz

Prospective Line Isc

50 kA

Discrete Input Type

DI7, DI8 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)

Discrete Output Type

Relay outputs R1A, R1B, R1C 250 V AC 3000 mA Relay outputs R1A, R1B, R1C 30 V DC 3000 mA Relay outputs R2A, R2C 250 V AC 5000 mA Relay outputs R2A, R2C 30 V DC 5000 mA Relay outputs R3A, R3C 250 V AC 5000 mA Relay outputs R3A, R3C 30 V DC 5000 mA

Relay Output Number

Relay Output Type

Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles

Transmission Frame

RTU

Number of Addresses

1…247 for Modbus serial

Data Format

8 bits, configurable odd, even or no parity

Type of Polarization

No impedance

Acceleration and Deceleration Ramps

Linear adjustable separately from 0.01...9999 s

Motor Slip Compensation

Automatic whatever the load Adjustable Not available in permanent magnet motor law Can be suppressed

Braking to Standstill

By DC injection

Refresh Time

Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)

Isolation

Between power and control terminals

Maximum THDI

<48 % full load conforming to IEC 61000-3-12

Volume of Cooling Air

1260 m3/h

Speed Drive Output Frequency

0.1…500 Hz

Option Card

Slot A: communication module, Profibus DP V1 Slot A: communication module, PROFINET Slot A: communication module, DeviceNet Slot A: communication module, Modbus TCP/EtherNet/IP Slot A: communication module, CANopen daisy chain RJ45 Slot A: communication module, CANopen SUB-D 9 Slot A: communication module, CANopen screw terminals Slot A/slot B: digital and analog I/O extension module Slot A/slot B: output relay extension module Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link Communication module, BACnet MS/TP Communication module, Ethernet Powerlink

Frequency Resolution

Display unit: 0.1 Hz Analog input: 0.012/50 Hz

Variable Speed Drive Application Selection

Building - HVAC compressor centrifugal Food and beverage processing other application Mining mineral and metal fan Mining mineral and metal pump Oil and gas fan Water and waste water other application Building - HVAC screw compressor Food and beverage processing pump Food and beverage processing fan Food and beverage processing atomization Oil and gas electro submersible pump (ESP) Oil and gas water injection pump Oil and gas jet fuel pump Oil and gas compressor for refinery Water and waste water centrifuge pump Water and waste water positive displacement pump Water and waste water electro submersible pump (ESP) Water and waste water screw pump Water and waste water lobe compressor Water and waste water screw compressor Water and waste water compressor centrifugal Water and waste water fan Water and waste water conveyor Water and waste water mixer

Motor Power Range AC-3

250…500 kW at 380…440 V 3 phases 250…500 kW at 480…500 V 3 phases

Enclosure Mounting

Wall mounted

Product Description

₱ 516,643

Quantity:
