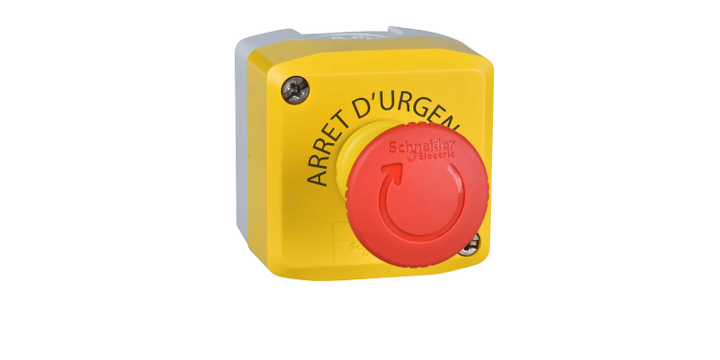

Schneider Electric XALK178 Complete Control Station, Harmony Xalk, Xald, Plastic, Yellow Lid, 1 Red Mushroom Push Button 40mm, Turn to Release, 1NC
Schneider Electric XALK178 Complete Control Station, Harmony Xalk, Xald, Plastic, Yellow Lid, 1 Red Mushroom Push Button 40mm, Turn to Release, 1NC
Brand: | SCHNEIDER ELECTRIC |
Model: | XALK178 |
Specifications
Please select at least one specification below.
Material
Polycarbonate
Standards
IEC 60204-1
IEC 60947-1
IEC 60947-5-4
ISO 13850
JIS C 4520
IEC 60364-5-53
IEC 60947-5-5
UL 508
CSA C22.2 No 14
IEC 60947-5-1
[Ui] Rated Insulation Voltage
600 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage
6 kV conforming to IEC 60947-1
Ambient Air Temperature For Operation
-40…70 °C
Ambient Air Temperature For Storage
-40…70 °C
Shock Resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Vibration Resistance
5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
Colour Of Base Of Enclosure
Light grey (RAL 7035)
Colour Of Cover
Yellow (RAL 1021)
Cable Entry
1 knock-out for cable entry 0…14 mm
2 knock-outs for Pg 13 cable gland and ISO M20 0…12 mm
Control Station Composition
1 mushroom head Ø 40 mm push-button, red 1 NC unmarked marking
Device Short Name
XALK
This spec is not available in the specification table.
Product Or Component Type
Complete control station
This spec is not available in the specification table.
Range Of Product
Harmony XALK
This spec is not available in the specification table.
Connections - Terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
This spec is not available in the specification table.
Overvoltage Category
Class II conforming to IEC 60536
This spec is not available in the specification table.
Ip Degree Of Protection
IP66 conforming to IEC 60529
IP67
IP69
IP69K
This spec is not available in the specification table.
Mechanical Durability
300000 cycles
This spec is not available in the specification table.
Electrical Durability
1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
This spec is not available in the specification table.
Tightening Torque
0.8…1.2 N.m conforming to IEC 60947-1
This spec is not available in the specification table.
Contacts Material
Silver alloy (Ag/Ni)
This spec is not available in the specification table.
[Ie] Rated Operational Current
3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
This spec is not available in the specification table.
[Ith] Conventional Free Air Thermal Current
10 A conforming to IEC 60947-5-1
This spec is not available in the specification table.
Ik Degree Of Protection
IK03 conforming to IEC 62262
This spec is not available in the specification table.
Product Destination
For XB5 Ø 22 mm control and signalling units
This spec is not available in the specification table.
Resistance To High Pressure Washer
7000000 Pa at 55 °C, distance : 0.1 m
This spec is not available in the specification table.
Protective Treatment
TH
This spec is not available in the specification table.
Nema Degree Of Protection
NEMA 13
NEMA 4X
This spec is not available in the specification table.
Shape Of Screw Head
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
This spec is not available in the specification table.
Operator Profile
1 mushroom head push-button
This spec is not available in the specification table.
Contact Operation
Slow-break
This spec is not available in the specification table.
Positive Opening
With conforming to IEC 60947-5-1 appendix K
This spec is not available in the specification table.
Short-Circuit Protection
10 A cartridge fuse type gG conforming to IEC 60947-5-1
This spec is not available in the specification table.
Electrical Reliability
Λ < 10exp(-6) at 5 V, 1 mA conforming to IEC 60947-5-4
Λ < 10exp(-8) at 17 V, 5 mA conforming to IEC 60947-5-4
This spec is not available in the specification table.
Operating Travel
1.5 mm (NC changing electrical state)
2.6 mm (NO changing electrical state)
4.3 mm (total travel)
This spec is not available in the specification table.
Operating Force
44 N NC + NO changing electrical state
This spec is not available in the specification table.
Reset
Turn to release
This spec is not available in the specification table.
Operators Description
Red unmarked 1 NC
This spec is not available in the specification table.
Control Station Application
Emergency switching off function
Emergency stop function
This spec is not available in the specification table.
Product Description
₱ 3,517
