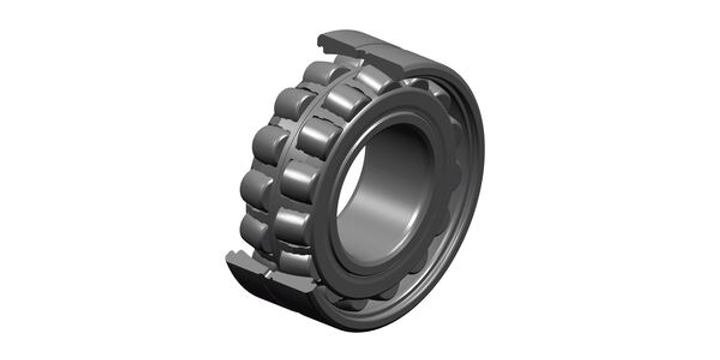

SNR/NTN 22208EAW33 C3 Bearing

• Dimensions:
• Internal Diameter (d): 40 mm
• External Diameter (D): 80 mm
• Bearing/Inner Ring Width (B): 23 mm
• External Diameter Inner Ring (d2): 50.2 mm
• Inner Diameter Outer Ring (D1): 70.8 mm
• Min Fillet Radius (rs): 1.1 mm
• Number of Lubrication Holes: 3
• Groove Width (b): 5.38 mm
• Hole Diameter (k): 2.5 mm
• Radial Clearance Class: C3
• Mass: 0.515 kg

Product Performance:

• Dynamic Load (C): 116 kN
• Static Load (C0): 105 kN
• Fatigue Limit Load (Cu): 12.8 kN
• Coefficient (e): 0.27
• Static Axial Load Coefficient (Y0): 2.41
• Lower Axial Load Coefficient (Y1): 2.47
• Upper Axial Load Coefficient (Y2): 3.68
• Reference Thermal Speed (Nref): 8200 rpm
• Mechanical Limit Speed (Nlim): 11000 rpm
• Min Operating Temperature (Tmin): -40 °C
• Max Operating Temperature (Tmax): 200 °C

Abutment:

• Min Shoulder Diameter IR (da min): 47 mm
• Max Shoulder Diameter OR (Da max): 73 mm
• Max Shaft & Housing Fillet Radius (ra max): 1 mm
