Electrical Relays

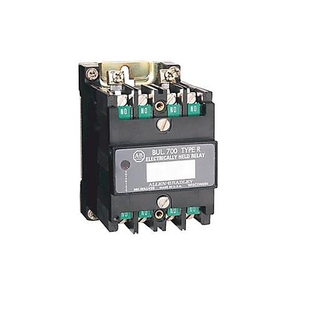

Control Relays

Utilisation Category

AC-15 conforming to IEC 60947-5-1 DC-13 conforming to IEC 60947-5-1 AC-1 conforming to IEC 60947-4-1 DC-1 conforming to IEC 60947-4-1

AC-15 AC-14 DC-13

DC-13 AC-15 AC-14

AC-15 conforming to IEC 60947-5-1 DC-13 conforming to IEC 60947-5-1 AC-1 conforming to IEC 60947-4-1 DC-1 conforming to IEC 60947-4-1

AC-15 AC-14 DC-13

Ip Degree Of Protection

IP20 (terminals) conforming to IEC 60529 IP30 (casing) conforming to IEC 60529

IP20 (terminals) conforming to IEC 60529 IP50 (front panel) conforming to IEC 60529 IP30 (housing) conforming to IEC 60529

IP2X front face conforming to VDE 0106

IP20 (terminals) conforming to IEC 60529 IP30 (casing) conforming to IEC 60529

IP20 (terminals) conforming to IEC 60529 IP50 (front panel) conforming to IEC 60529 IP30 (housing) conforming to IEC 60529

Ambient Air Temperature For Operation

-40…60 °C 60…70 °C with derating

-20…50 °C at 60 Hz -20…60 °C at 50 Hz

-40…60 °C 60…70 °C with derating

Mechanical Durability

30000000 cycles

10000000 cycles

30000000 cycles

10000000 cycles

Product Certifications

GL EAC CCC CE CSA UL RCM

CE GL CCC EAC RCM UL CSA

GL CSA RCM CE EAC CCC UL

CCC CE CSA EAC UL GL RCM

GL EAC CCC CE CSA UL RCM

CE GL CCC EAC RCM UL CSA

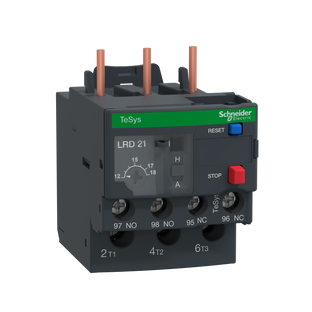

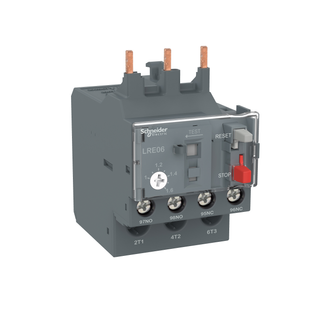

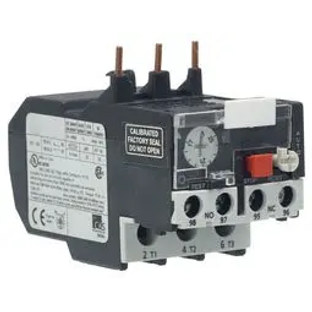

Overload Relays

Overload Relays

Overload Relays

EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5

IEC 60255-17 IEC 60947-4-1 IEC 60255-8 VDE 0660 EN 60947-4-1

EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495

EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 EN 50495

EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5

IEC 60255-17 IEC 60947-4-1 IEC 60255-8 VDE 0660 EN 60947-4-1

[Ui] Rated Insulation Voltage

Power circuit: 600 V AC conforming to CSA Power circuit: 600 V AC conforming to UL Power circuit: 690 V AC conforming to IEC 60947-4-1

Power circuit: 1000 V AC conforming to IEC 60947-4

Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1

Power circuit: 1000 V conforming to IEC 60947-4-1 Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL

Power circuit: 600 V AC conforming to CSA Power circuit: 600 V AC conforming to UL Power circuit: 690 V AC conforming to IEC 60947-4-1

Power circuit: 1000 V AC conforming to IEC 60947-4

Ambient Air Temperature For Operation

-20…55 °C without derating conforming to IEC 60947 -30…60 °C with derating conforming to IEC 60947

-20…55 °C conforming to IEC 60255-8

-20…60 °C without derating conforming to IEC 60947-4-1

-25 → +60 °C

-20…55 °C without derating conforming to IEC 60947 -30…60 °C with derating conforming to IEC 60947

-20…55 °C conforming to IEC 60255-8

[Ith] Conventional Free Air Thermal Current

6 A for signalling circuit

3 A for signalling circuit

5 A for signalling circuit

3 A for control circuit

6 A for signalling circuit

3 A for signalling circuit

Thermal Protection Adjustment Range

Power Relay

Contact Material

Silver alloy (AgNi)

Silver alloy (AgSnO2In2O3)

Silver alloy (Ag/Ni)

Silver alloy (AgNi)

Silver alloy (AgSnO2In2O3)

IEC 61810-1 CSA C22.2 No 14 UL 508

IEC 61810-1 (iss. 2) CE

UL 508 IEC 61810-1 CSA C22.2 No 14

CSA C22.2 No 14 IEC 61810-1 UL 508

IEC 61810-1 CSA C22.2 No 14 UL 508

IEC 61810-1 (iss. 2) CE
