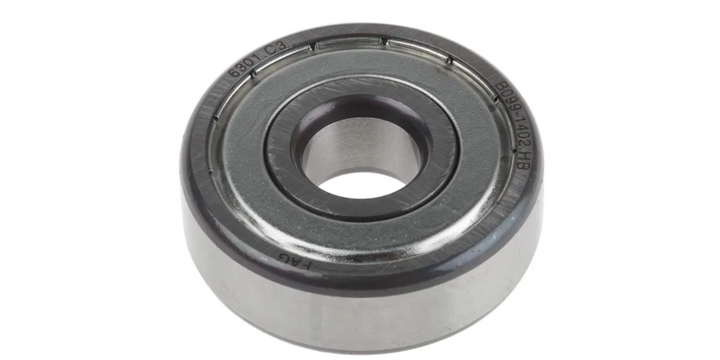

 Fag 6301-2Z-C3 Single Row Deep Groove Ball Bearing- Both Sides Shielded 12mm I.d, 37mm O.d

Ball Bearing Type: Single Row Deep Groove Ball Bearing

<h3 class="md-block-header-three"><strong class="md-inline-bold"> Fag 6301-2Z-C3 Single Row Deep Groove Ball Bearing- Both Sides Shielded 12mm I.d, 37mm O.d</strong></h3><p class="md-block-unstyled"><strong class="md-inline-bold">Specifications</strong></p><ul class="md-block-unordered-list-item"><li>Inside Diameter: 12mm</li><li>Outside Diameter: 37mm</li><li>Race Width: 12mm</li><li>Ball Bearing Type: Single Row Deep Groove Ball Bearing</li><li>Sealing Arrangement: Both Sides Shielded</li><li>Bearing Clearance: C3</li><li>Material: Steel</li><li>Ball Material: Steel</li><li>Cage Material: Steel</li><li>Number of Rows: 1</li><li>Static Load Rating: 4.2kN</li><li>Dynamic Load Rating: 10.3kN</li><li>Bore Type: Parallel</li><li>Bearing Series: 3 Medium</li><li>Partial Bearing Code: 6301</li><li>Race Type: Plain</li></ul>

<h3><strong> Fag 6301-2Z-C3 Single Row Deep Groove Ball Bearing- Both Sides Shielded 12mm I.d, 37mm O.d</strong></h3>
<p><strong>Specifications</strong></p>
<ul>
<li>Inside Diameter: 12mm</li>
<li>Outside Diameter: 37mm</li>
<li>Race Width: 12mm</li>
<li>Ball Bearing Type: Single Row Deep Groove Ball Bearing</li>
<li>Sealing Arrangement: Both Sides Shielded</li>
<li>Bearing Clearance: C3</li>
<li>Material: Steel</li>
<li>Ball Material: Steel</li>
<li>Cage Material: Steel</li>
<li>Number of Rows: 1</li>
<li>Static Load Rating: 4.2kN</li>
<li>Dynamic Load Rating: 10.3kN</li>
<li>Bore Type: Parallel</li>
<li>Bearing Series: 3 Medium</li>
<li>Partial Bearing Code: 6301</li>
<li>Race Type: Plain</li>
</ul>


Technical Data Sheet

Fag 6301-2Z-C3 Single Row Deep Groove Ball Bearing- Both Sides Shielded 12mm I.d, 37mm O.d

fag 6301-2z-c3 single row deep groove ball bearing- sides shielded 12mm i.d, 37mm o.d bantalan bola alur dalam baris tunggal- kedua sisi terlindung i.d 12mm, bearings bearing tunggal galas bebola dalam- kedua-dua bahagian 单列深沟球轴承 两侧带护罩 内径 12 毫米，外径 37 毫米 球轴承

fag-6301-2z-c3-single-row-deep-groove-ball-bearing-both-sides-shielded-12mm-i-d-37mm-o-d

Merek:	FAG
Model:	6301-2Z-C3

Fag 6301-2Z-C3 Bantalan Bola Alur Dalam Baris Tunggal- Kedua Sisi Terlindung Id 12mm, Od 37mm
