Features :
180˚ rotating head for convenient operation.
Superior guillotine type cutting for less jamming than shear type cutters.
Single stage pumping action.
All blades are easily replaceable.
Flip-top latch for easy insertion of cutting material.
Single stage pump action with spring return.
No set-up time required.
Lightweight, self-contained tool, can be used anywhere.

Specifications :
Max pressure : 700 bar
Oil required : 25 cc
Max output : 6.7 tons / 66 kN

Cutting capacity :
Wire rope 6×7 : 24 mm
Wire rope 6×12 : 24 mm
Wire rope 6×19 : 24 mm
Soft copper bar : 23 mm
Soft aluminum bar : 24 mm
Soft steel bar : 16 mm
Cu strands : 24 mm
Al strands : 24 mm
ACSR : 24 mm

※Note: Tensile strength (daN/mm²≦180)

<h3 class="md-block-header-three">Kudos HYSC-24 Hydraulic Cutter</h3>Features : 180˚ rotating head for convenient operation. Superior guillotine type cutting for less jamming than shear type cutters. Single stage pumping action. All blades are easily replaceable. Flip-top latch for easy insertion of cutting material. Single stage pump action with spring return. No set-up time required. Lightweight, self-contained tool, can be used anywhere.Specifications : Max pressure : 700 bar Oil required : 25 cc Max output : 6.7 tons / 66 kNCutting capacity : Wire rope 6×7 : 24 mm Wire rope 6×12 : 24 mm Wire rope 6×19 : 24 mm Soft copper bar : 23 mm Soft aluminum bar : 24 mm Soft steel bar : 16 mm Cu strands : 24 mm Al strands : 24 mm ACSR : 24 mm※Note: Tensile strength (daN/mm²≦180)※Cutting of piano wire is prohibited.Accessories : Carrying bag

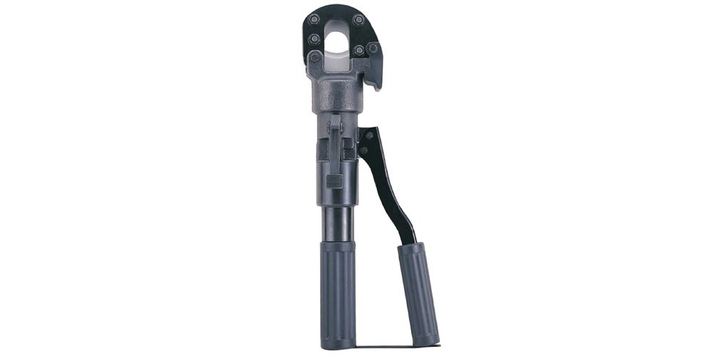

<h3>Kudos HYSC-24 Hydraulic Cutter</h3>
Features :
180˚ rotating head for convenient operation.
Superior guillotine type cutting for less jamming than shear type cutters.
Single stage pumping action.
All blades are easily replaceable.
Flip-top latch for easy insertion of cutting material.
Single stage pump action with spring return.
No set-up time required.
Lightweight, self-contained tool, can be used anywhere.
Specifications :
Max pressure : 700 bar
Oil required : 25 cc
Max output : 6.7 tons / 66 kN
Cutting capacity :
Wire rope 6×7 : 24 mm
Wire rope 6×12 : 24 mm
Wire rope 6×19 : 24 mm
Soft copper bar : 23 mm
Soft aluminum bar : 24 mm
Soft steel bar : 16 mm
Cu strands : 24 mm
Al strands : 24 mm
ACSR : 24 mm
※Note: Tensile strength (daN/mm²≦180)
※Cutting of piano wire is prohibited.
Accessories :
Carrying bag
&nbsp;

Merek:	Kudos
Model:	HYSC-24

Pemotong Hidraulik Kudos HYSC-24
