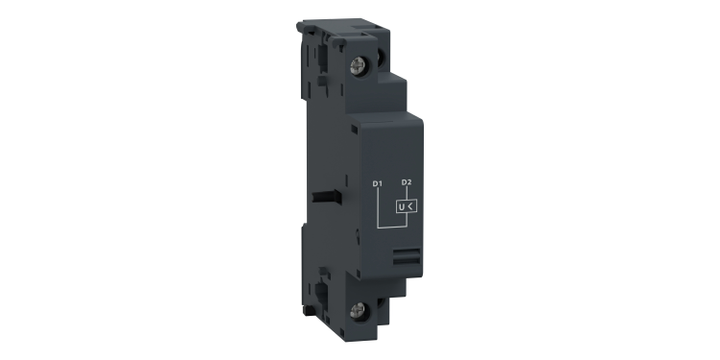

Schneider Electric GVAU226 Undervoltage Release (mn),tesys Deca Frame 2,220-240V Ac 60Hz

 TeSys GV electrical trip, MN undervoltage release, 220-240V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

1 cable(s) 0.75…2.5 mm² flexible without cable end

2 cable(s) 0.75…2.5 mm² flexible without cable end

1 cable(s) 0.75…1.5 mm² flexible with cable end

2 cable(s) 0.75…1.5 mm² flexible with cable end

<h3 class="md-block-header-three">Schneider Electric GVAU226 Undervoltage Release (mn),tesys Deca Frame 2,220-240V Ac 60Hz</h3> TeSys GV electrical trip, MN undervoltage release, 220-240V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).Specifications: Range:<ul class="md-block-unordered-list-item"><li>TeSys</li><li>TeSys Deca</li></ul>Product or Component Type:<ul class="md-block-unordered-list-item"><li>Undervoltage Release</li></ul>Device Short Name:<ul class="md-block-unordered-list-item"><li>GVAU</li></ul>Complementary:<ul class="md-block-unordered-list-item"><li>Range Compatibility:</li><ul class="md-block-unordered-list-item"><li>TeSys GV2ME</li><li>TeSys GV2LE</li><li>TeSys GV2L</li><li>TeSys GV2P</li><li>TeSys GV3L</li><li>TeSys GV3P</li><li>TeSys Deca</li></ul><li>[Uc] Control Circuit Voltage:</li><ul class="md-block-unordered-list-item"><li>220...240 V AC 60 Hz</li></ul><li>Control Circuit Voltage Limits:</li><ul class="md-block-unordered-list-item"><li>0.85...1.1 Un</li></ul><li>[Ui] Rated Insulation Voltage:</li><ul class="md-block-unordered-list-item"><li>690 V AC (IEC 60947-1)</li><li>600 V AC (UL 60947-4-1)</li><li>600 V AC (CSA C22.2 No 60947-4-1)</li></ul><li>Threshold Tripping Voltage:</li><ul class="md-block-unordered-list-item"><li>0.7...0.35 Un</li></ul><li>Inrush Power:</li><ul class="md-block-unordered-list-item"><li>12 VA AC</li><li>8 W</li></ul><li>Hold-in Power Consumption:</li><ul class="md-block-unordered-list-item"><li>3.5 VA AC</li><li>1.1 W</li></ul><li>Operating Time:</li><ul class="md-block-unordered-list-item"><li>10...15 ms (IEC 60947-1)</li></ul><li>On-load Factor:</li><ul class="md-block-unordered-list-item"><li>100%</li></ul><li>Connections - Terminals:</li><ul class="md-block-unordered-list-item"><li>Screw Clamp Terminals:</li><ul class="md-block-unordered-list-item"><li>1 cable(s) 1…2.5 mm² solid</li><li>2 cable(s) 1…2.5 mm² solid</li><li>1 cable(s) 0.75…2.5 mm² flexible without cable end</li><li>2 cable(s) 0.75…2.5 mm² flexible without cable end</li><li>1 cable(s) 0.75…1.5 mm² flexible with cable end</li><li>2 cable(s) 0.75…1.5 mm² flexible with cable end</li></ul></ul><li>Tightening Torque:</li><ul class="md-block-unordered-list-item"><li>&lt; 1.4 N.m on screw clamp terminals</li></ul><li>Mechanical Durability:</li><ul class="md-block-unordered-list-item"><li>10,000 cycles with GV3P and GV3L</li><li>30,000 cycles with GV2ME and GV2P</li></ul><li>Quantity per Set:</li><ul class="md-block-unordered-list-item"><li>Set of 10</li></ul><li>Dimensions:</li><ul class="md-block-unordered-list-item"><li>Height: 89 mm</li><li>Width: 18 mm</li><li>Depth: 66 mm</li></ul><li>Net Weight:</li><ul class="md-block-unordered-list-item"><li>0.105 kg</li></ul><li>Colour:</li><ul class="md-block-unordered-list-item"><li>Dark Grey</li></ul></ul>

<h3>Schneider Electric GVAU226 Undervoltage Release (mn),tesys Deca Frame 2,220-240V Ac 60Hz</h3>
&nbsp;TeSys GV electrical trip, MN undervoltage release, 220-240V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Specifications:
&nbsp;Range:
<ul>
<li>TeSys</li>
<li>TeSys Deca</li>
</ul>
Product or Component Type:
<ul>
<li>Undervoltage Release</li>
</ul>
Device Short Name:
<ul>
<li>GVAU</li>
</ul>
Complementary:
<ul>
<li>Range Compatibility:</li>
<ul>
<li>TeSys GV2ME</li>
<li>TeSys GV2LE</li>
<li>TeSys GV2L</li>
<li>TeSys GV2P</li>
<li>TeSys GV3L</li>
<li>TeSys GV3P</li>
<li>TeSys Deca</li>
</ul>
<li>[Uc] Control Circuit Voltage:</li>
<ul>
<li>220...240 V AC 60 Hz</li>
</ul>
<li>Control Circuit Voltage Limits:</li>
<ul>
<li>0.85...1.1 Un</li>
</ul>
<li>[Ui] Rated Insulation Voltage:</li>
<ul>
<li>690 V AC (IEC 60947-1)</li>
<li>600 V AC (UL 60947-4-1)</li>
<li>600 V AC (CSA C22.2 No 60947-4-1)</li>
</ul>
<li>Threshold Tripping Voltage:</li>
<ul>
<li>0.7...0.35 Un</li>
</ul>
<li>Inrush Power:</li>
<ul>
<li>12 VA AC</li>
<li>8 W</li>
</ul>
<li>Hold-in Power Consumption:</li>
<ul>
<li>3.5 VA AC</li>
<li>1.1 W</li>
</ul>
<li>Operating Time:</li>
<ul>
<li>10...15 ms (IEC 60947-1)</li>
</ul>
<li>On-load Factor:</li>
<ul>
<li>100%</li>
</ul>
<li>Connections - Terminals:</li>
<ul>
<li>Screw Clamp Terminals:</li>
<ul>
<li>1 cable(s) 1…2.5 mm² solid</li>
<li>2 cable(s) 1…2.5 mm² solid</li>
<li>1 cable(s) 0.75…2.5 mm² flexible without cable end</li>
<li>2 cable(s) 0.75…2.5 mm² flexible without cable end</li>
<li>1 cable(s) 0.75…1.5 mm² flexible with cable end</li>
<li>2 cable(s) 0.75…1.5 mm² flexible with cable end</li>
</ul>
</ul>
<li>Tightening Torque:</li>
<ul>
<li>&lt; 1.4 N.m on screw clamp terminals</li>
</ul>
<li>Mechanical Durability:</li>
<ul>
<li>10,000 cycles with GV3P and GV3L</li>
<li>30,000 cycles with GV2ME and GV2P</li>
</ul>
<li>Quantity per Set:</li>
<ul>
<li>Set of 10</li>
</ul>
<li>Dimensions:</li>
<ul>
<li>Height: 89 mm</li>
<li>Width: 18 mm</li>
<li>Depth: 66 mm</li>
</ul>
<li>Net Weight:</li>
<ul>
<li>0.105 kg</li>
</ul>
<li>Colour:</li>
<ul>
<li>Dark Grey</li>
</ul>
</ul>
