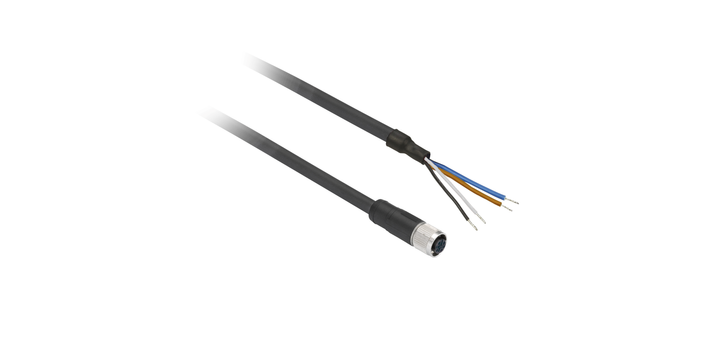

Schneider   Electric XZCP1141L5 pre-wired Connectors Xz - Straight Female - M12 - 4 Pins   - Cable Pur 5m

This product is part   of the XZ range, an offer of cordsets and connectors. This cable is made up   of 4 wires and has a 4 pins M12 straight female connector with a metal   collar. It is designed in polyurethane for severe industrial   environments. Its rated operational   voltage is 250V/AC or 300V/DC and its nominal current is 4A. Its contact   resistance is 5000µOhm and its minimum insulating resistance is 1GΩ. It is   dustproof, resistant to water jets (IP65), can be temporarily immersed in   water (IP67), and withstands high pressure and steam cleaning (IP69K). This   cable has a length of 5m and a diameter of 5.2mm. It is made up of 4 wires,   each section of which is 0.34 mm². Its color is black and its weight is   0.19kg. It is intended for industrial   environments thanks to its excellent resistance to extreme temperatures   (-35°C to +90°C in operation if the cable remains static). This cable   complies with cULus certification. It is compatible with a 5 pins M12 male   connector. XZ range includes a wide   range of cordsets, connectors, and connection boxes designed for a simple   connection process and a quick reference identification.

Schneider Electric XZCP1141L5 pre-wired Connectors Xz - Straight Female - M12 - 4 Pins - Cable Pur 5m This product is part of the XZ range, an offer of cordsets and connectors. This cable is made up of 4 wires and has a 4 pins M12 straight female connector with a metal collar. It is designed in polyurethane for severe industrial environments. Its rated operational voltage is 250V/AC or 300V/DC and its nominal current is 4A. Its contact resistance is 5000µOhm and its minimum insulating resistance is 1GΩ. It is dustproof, resistant to water jets (IP65), can be temporarily immersed in water (IP67), and withstands high pressure and steam cleaning (IP69K). This cable has a length of 5m and a diameter of 5.2mm. It is made up of 4 wires, each section of which is 0.34 mm². Its color is black and its weight is 0.19kg. It is intended for industrial environments thanks to its excellent resistance to extreme temperatures (-35°C to +90°C in operation if the cable remains static). This cable complies with cULus certification. It is compatible with a 5 pins M12 male connector. XZ range includes a wide range of cordsets, connectors, and connection boxes designed for a simple connection process and a quick reference identification.

Schneider Electric XZCP1141L5 pre-wired Connectors Xz - Straight Female - M12 - 4 Pins - Cable Pur 5m
This product is part of the XZ range, an offer of cordsets and connectors. This cable is made up of 4 wires and has a 4 pins M12 straight female connector with a metal collar. It is designed in polyurethane for severe industrial environments. Its rated operational voltage is 250V/AC or 300V/DC and its nominal current is 4A. Its contact resistance is 5000µOhm and its minimum insulating resistance is 1GΩ. It is dustproof, resistant to water jets (IP65), can be temporarily immersed in water (IP67), and withstands high pressure and steam cleaning (IP69K). This cable has a length of 5m and a diameter of 5.2mm. It is made up of 4 wires, each section of which is 0.34 mm². Its color is black and its weight is 0.19kg. It is intended for industrial environments thanks to its excellent resistance to extreme temperatures (-35°C to +90°C in operation if the cable remains static). This cable complies with cULus certification. It is compatible with a 5 pins M12 male connector. XZ range includes a wide range of cordsets, connectors, and connection boxes designed for a simple connection process and a quick reference identification.&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;

Data Sheet

Schneider Electric XZCP1141L5 pre-wired Connectors Xz - Straight Female - M12 - 4 Pins - Cable Pur 5m
