Applicable Standards: IEC61672-1: 2013 Class 2, ANSI S1.4: 1983 Type 2

Measurement Frequency Range: 31.5 Hz to 8 kHz

Microphone: 1/2 inch Electret condenser microphone

Five ranges in 10 dB steps: 30 ~ 90 dB, 40 ~ 100 dB, 50 ~ 110 dB, 60 ~ 120 dB, 70 ~ 130 dB

Digital Display: 4 digit LCD, 0.1 dB resolution, updated every 1 second

Quasi-Analog Bar Indicator: 1 dB steps, 60 dB display range, updated every 0.125 seconds

Analog AC / DC Output: 2 Vrms (at full scale), 10 mVDC/dB

Power Supply: Four 1.5V LR-6/AA size cells, AC adapter

Operating Temperature, Humidity: -10°C to 50°C (14°F to 122°F), RH < 90% non-condensing

Dimensions: 265 (L) × 72 (W) × 36 (H) mm

<h3 class="md-block-header-three"> Tes 1352S Digital Sound Level</h3>Applicable Standards: IEC61672-1: 2013 Class 2, ANSI S1.4: 1983 Type 2Measurement Item: SPL, MaxLMeasurement Level: 30 dB to 130 dBLinearity Range:<ul class="md-block-unordered-list-item"><li>60 dB</li></ul>Measurement Frequency Range: 31.5 Hz to 8 kHzFrequency Weight: A and CTime Weight: Fast, SlowAccuracy: ±1.0 dB (ref 94 dB @ 1 kHz)Microphone: 1/2 inch Electret condenser microphoneMeasurement Level Range:<ul class="md-block-unordered-list-item"><li>Five ranges in 10 dB steps: 30 ~ 90 dB, 40 ~ 100 dB, 50 ~ 110 dB, 60 ~ 120 dB, 70 ~ 130 dB</li></ul>Digital Display: 4 digit LCD, 0.1 dB resolution, updated every 1 secondQuasi-Analog Bar Indicator: 1 dB steps, 60 dB display range, updated every 0.125 secondsDisplay Warning Function:<ul class="md-block-unordered-list-item"><li>Displayed at the upper limit</li><li>Displayed at the lower limit</li></ul>Overrange Indicator: YesUnderrange Indicator: YesAnalog AC / DC Output: 2 Vrms (at full scale), 10 mVDC/dBPower Supply: Four 1.5V LR-6/AA size cells, AC adapterBattery Life: Approximately 24 hoursOperating Temperature, Humidity: -10°C to 50°C (14°F to 122°F), RH &lt; 90% non-condensingDimensions: 265 (L) × 72 (W) × 36 (H) mmWeight: Approximately 380gAccessories:<ul class="md-block-unordered-list-item"><li>Instruction manual</li><li>Battery</li><li>Carrying case</li><li>Adjustment screwdriver</li><li>Software</li><li>Wind shield</li><li>USB connecting cable</li><li>3.5 mm plug</li><li>Microphone extension cable</li><li>AC adapter</li></ul>Optional Accessories: Not specified

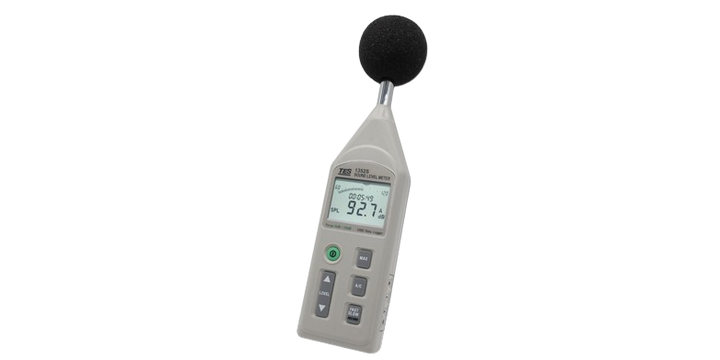

<h3> Tes 1352S Digital Sound Level</h3>
Applicable Standards: IEC61672-1: 2013 Class 2, ANSI S1.4: 1983 Type 2
Measurement Item: SPL, MaxL
Measurement Level: 30 dB to 130 dB
Linearity Range:
<ul>
<li>60 dB</li>
</ul>
Measurement Frequency Range: 31.5 Hz to 8 kHz
Frequency Weight: A and C
Time Weight: Fast, Slow
Accuracy: ±1.0 dB (ref 94 dB @ 1 kHz)
Microphone: 1/2 inch Electret condenser microphone
Measurement Level Range:
<ul>
<li>Five ranges in 10 dB steps: 30 ~ 90 dB, 40 ~ 100 dB, 50 ~ 110 dB, 60 ~ 120 dB, 70 ~ 130 dB</li>
</ul>
Digital Display: 4 digit LCD, 0.1 dB resolution, updated every 1 second
Quasi-Analog Bar Indicator: 1 dB steps, 60 dB display range, updated every 0.125 seconds
Display Warning Function:
<ul>
<li>Displayed at the upper limit</li>
<li>Displayed at the lower limit</li>
</ul>
Overrange Indicator: Yes
Underrange Indicator: Yes
Analog AC / DC Output: 2 Vrms (at full scale), 10 mVDC/dB
Power Supply: Four 1.5V LR-6/AA size cells, AC adapter
Battery Life: Approximately 24 hours
Operating Temperature, Humidity: -10°C to 50°C (14°F to 122°F), RH &lt; 90% non-condensing
Dimensions: 265 (L) × 72 (W) × 36 (H) mm
Weight: Approximately 380g
Accessories:
<ul>
<li>Instruction manual</li>
<li>Battery</li>
<li>Carrying case</li>
<li>Adjustment screwdriver</li>
<li>Software</li>
<li>Wind shield</li>
<li>USB connecting cable</li>
<li>3.5 mm plug</li>
<li>Microphone extension cable</li>
<li>AC adapter</li>
</ul>
Optional Accessories: Not specified
